SPECIFICATIONS

Brand Name: JINGYANGPV

Certification: CE,FCC,RoHS,weee

Flexible Solar Panel: No

Foldable Solar Panel: No

Material: Monocrystalline Silicon

Max. power: 130W

Model Number: CNMYPV120(36)M166

Module Efficien: 24%

Nominal Capacity: 120W

Number of Cells: 36

Number of Panels: 1

Rigid Solar Panel: Yes

Size: 1080MM*530MM*30MM

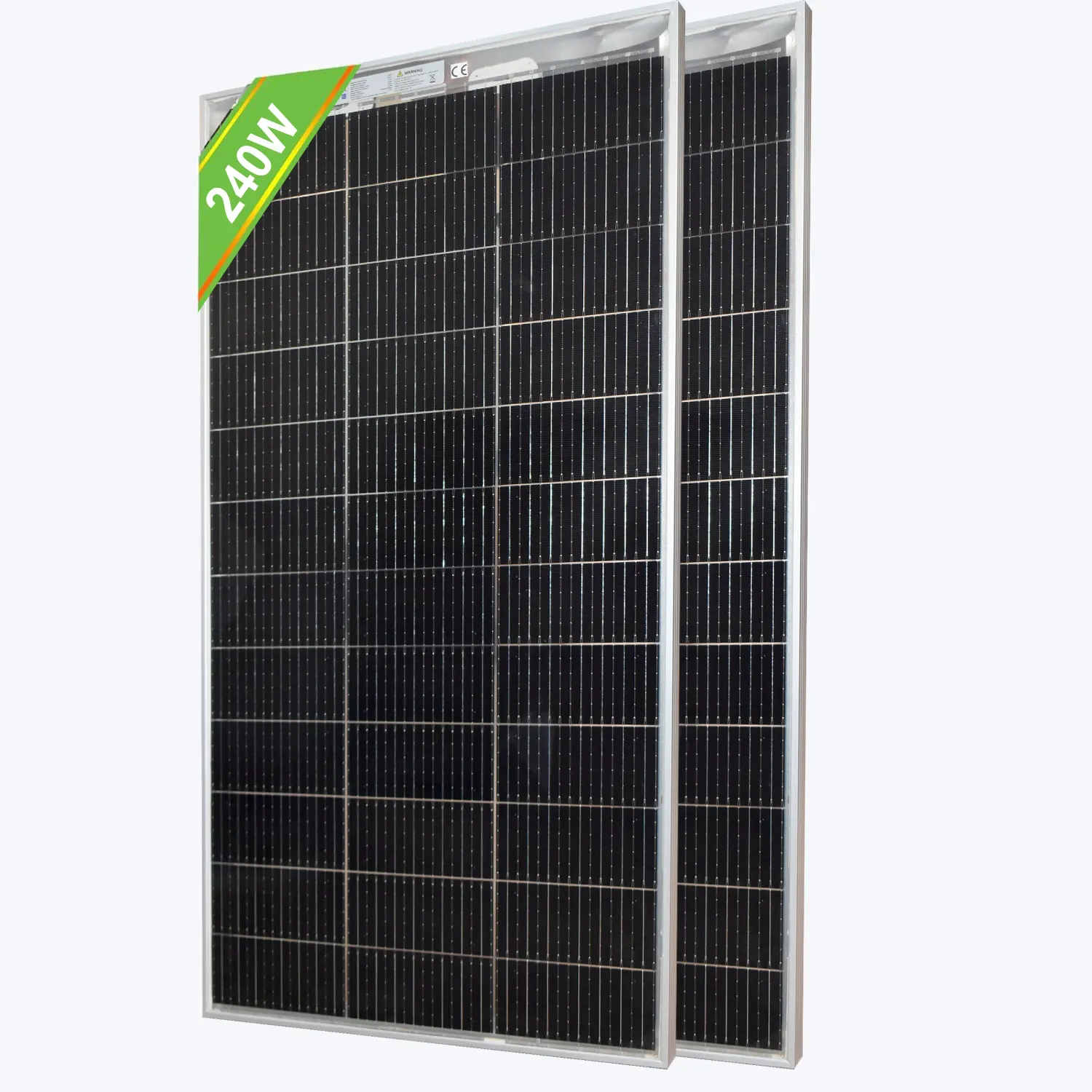

Type: Solar Panel

is_customized: Yes

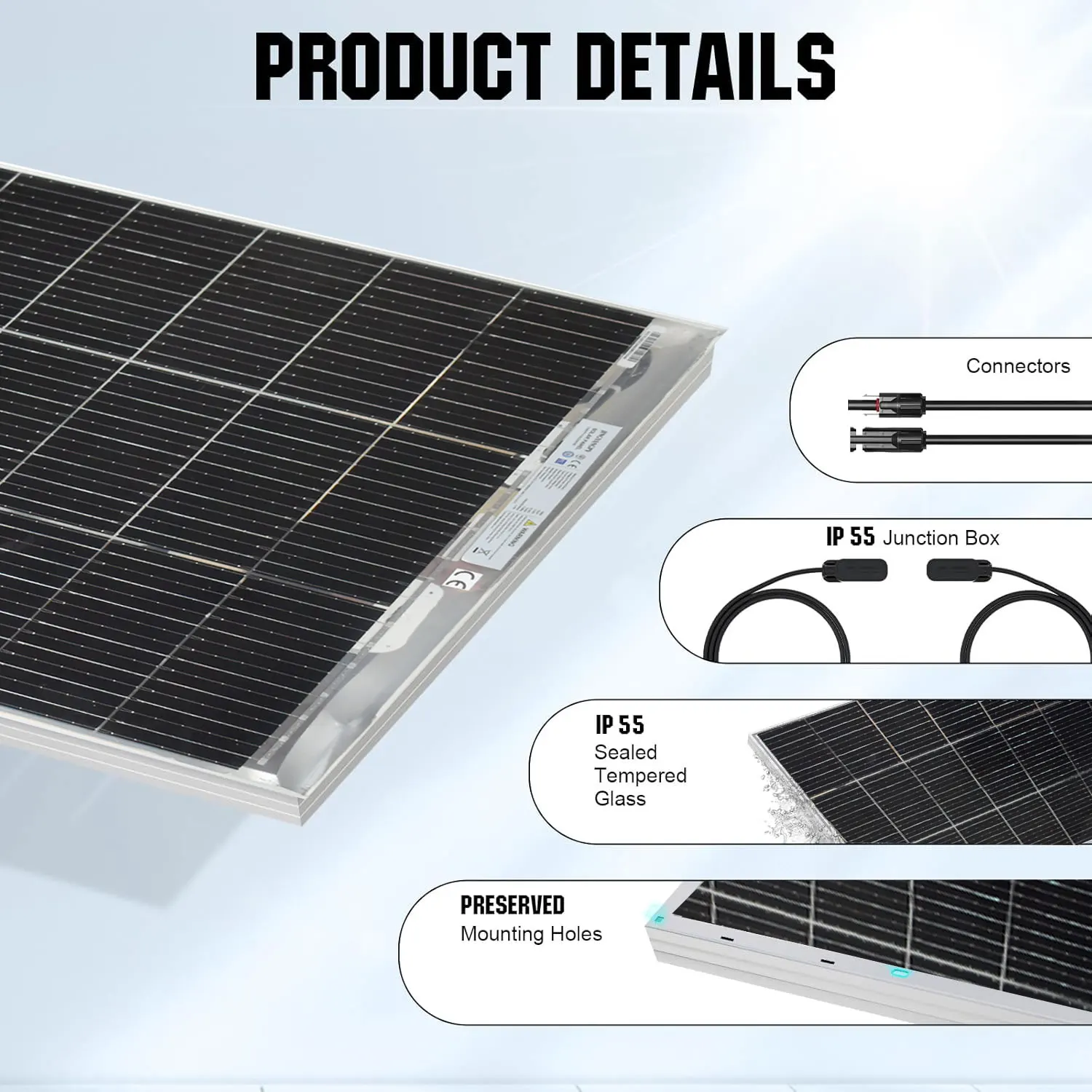

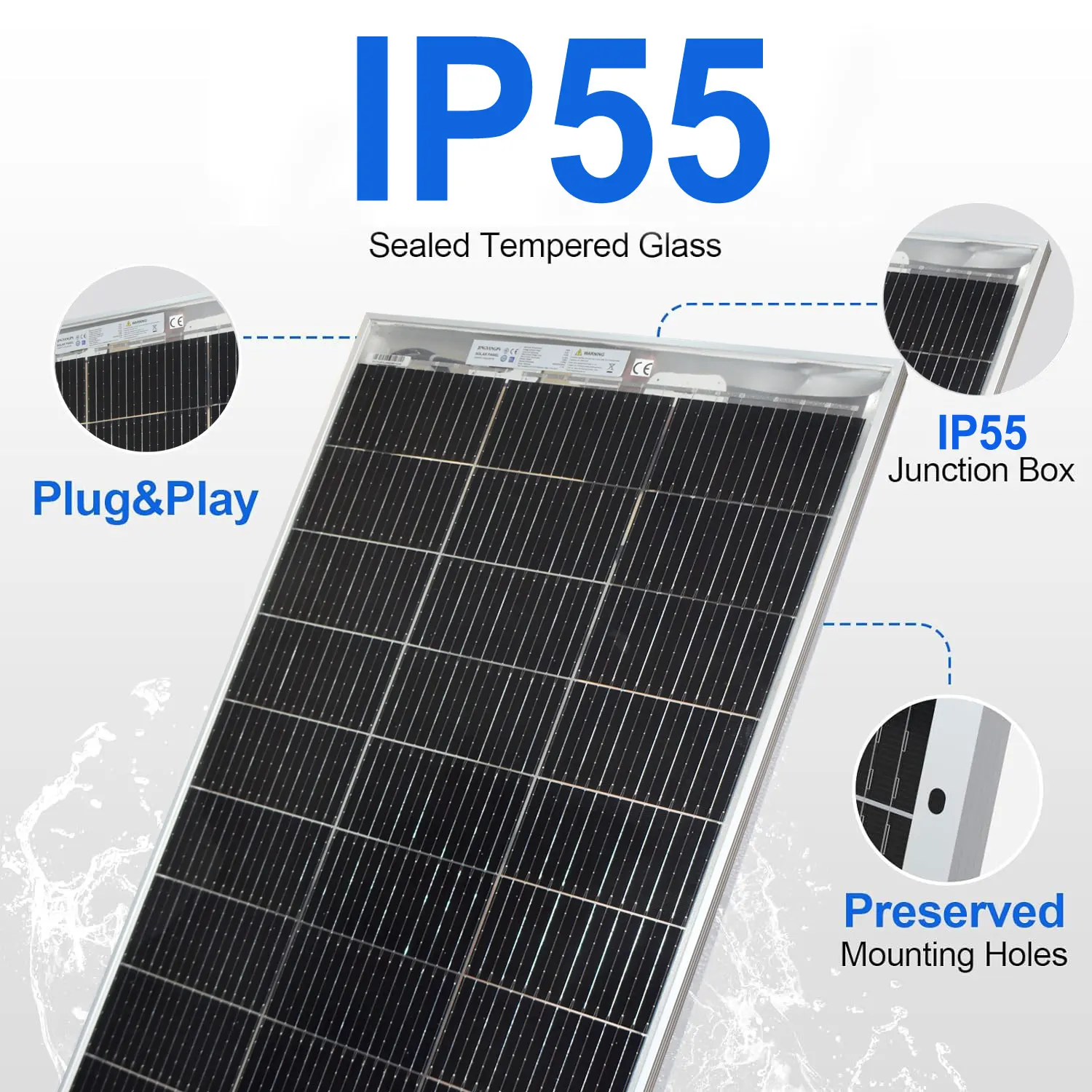

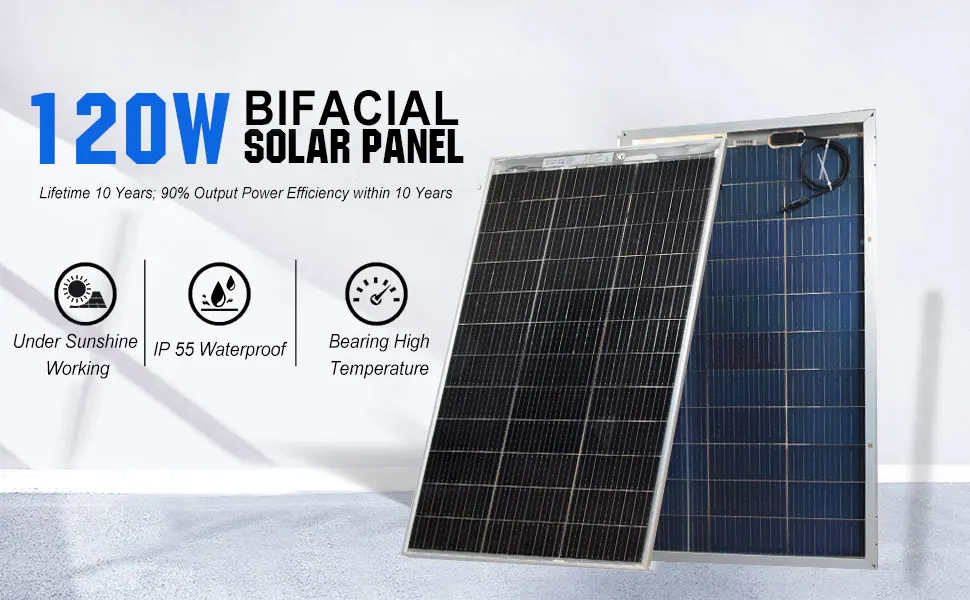

Advantages of JINGYANG Tempered solar panels:

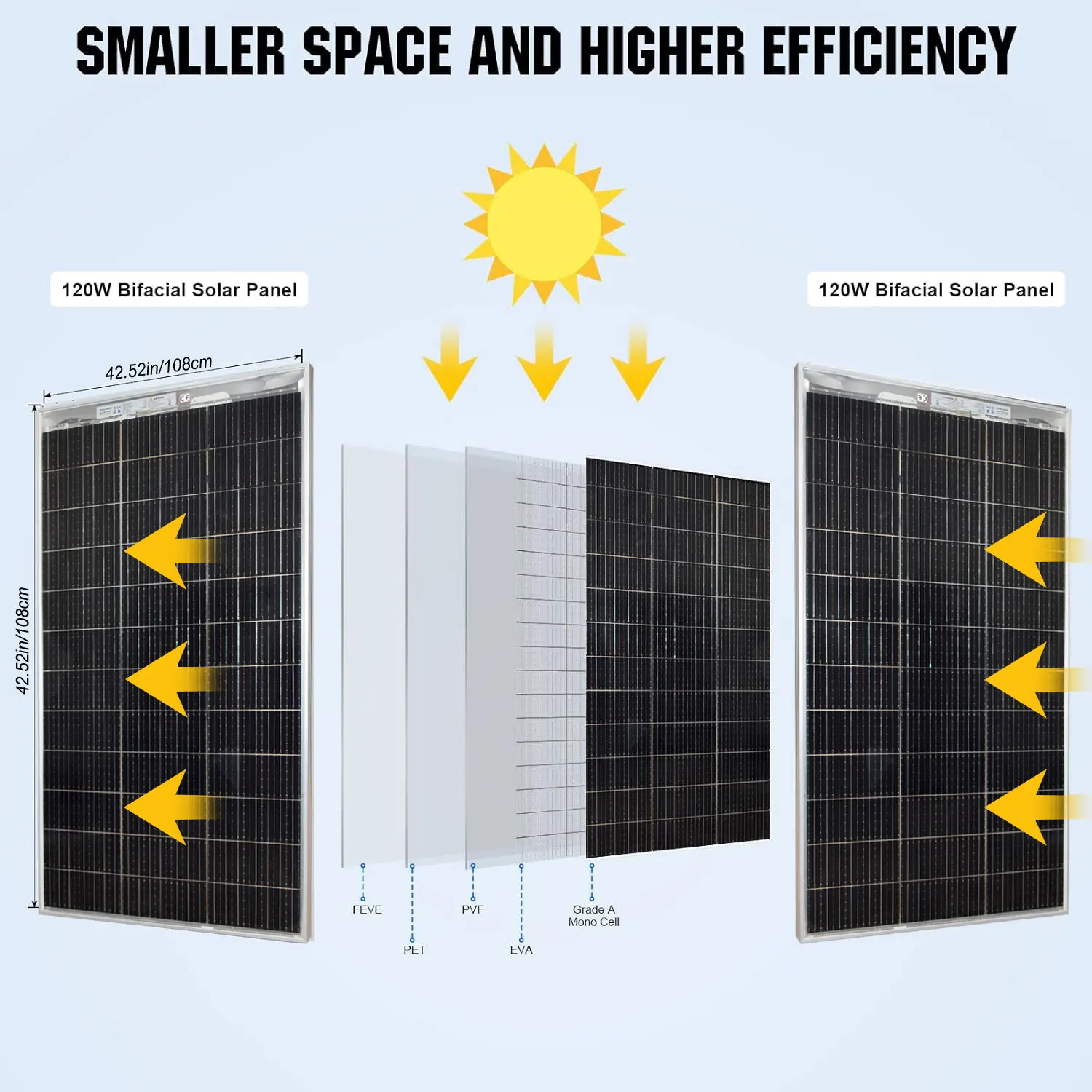

Multi-layer sheet package, sturdy and durable, good heat dissipation. No hot spots will appear.

The aluminum frame is corrosion resistant and is suitable for both indoor and outdoor use.

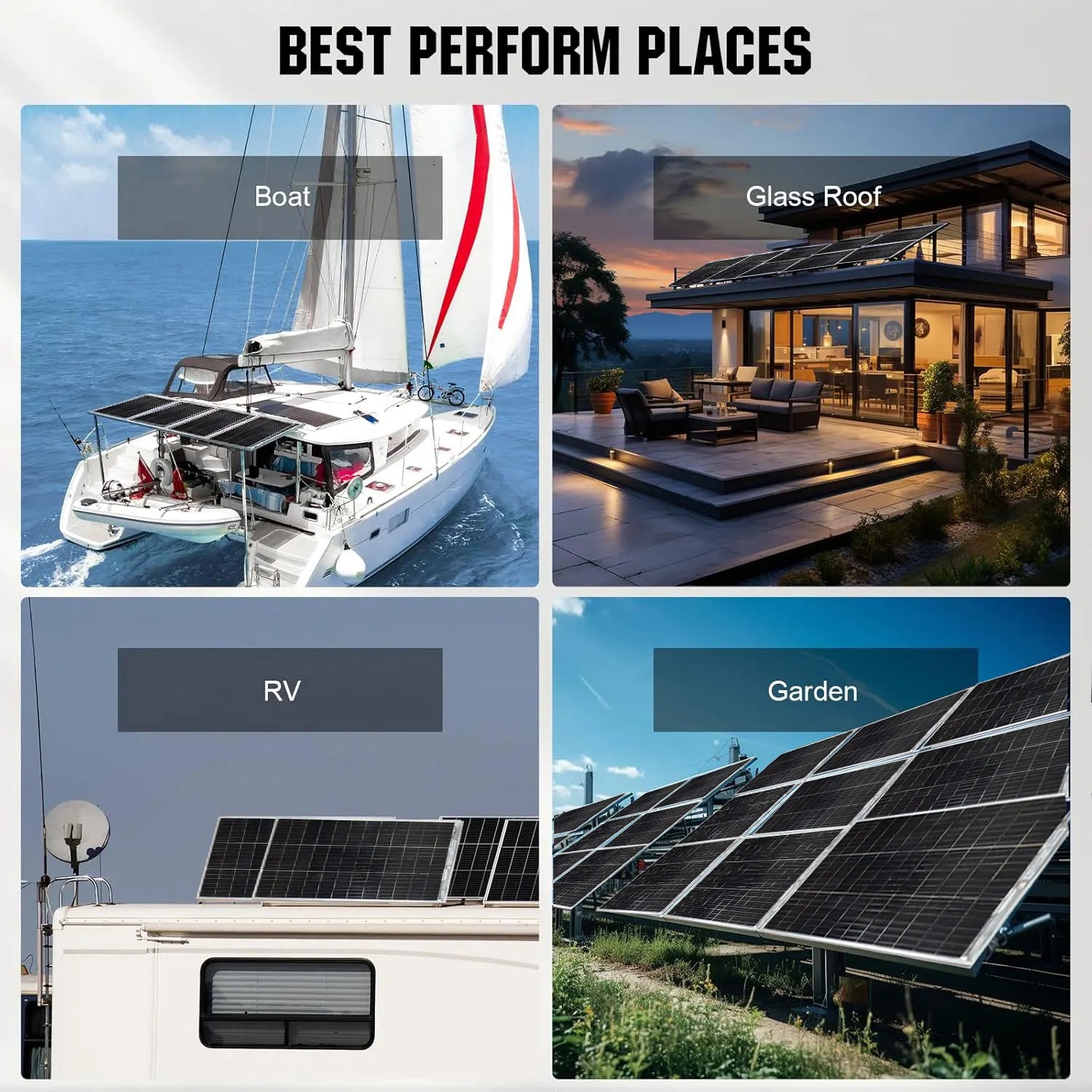

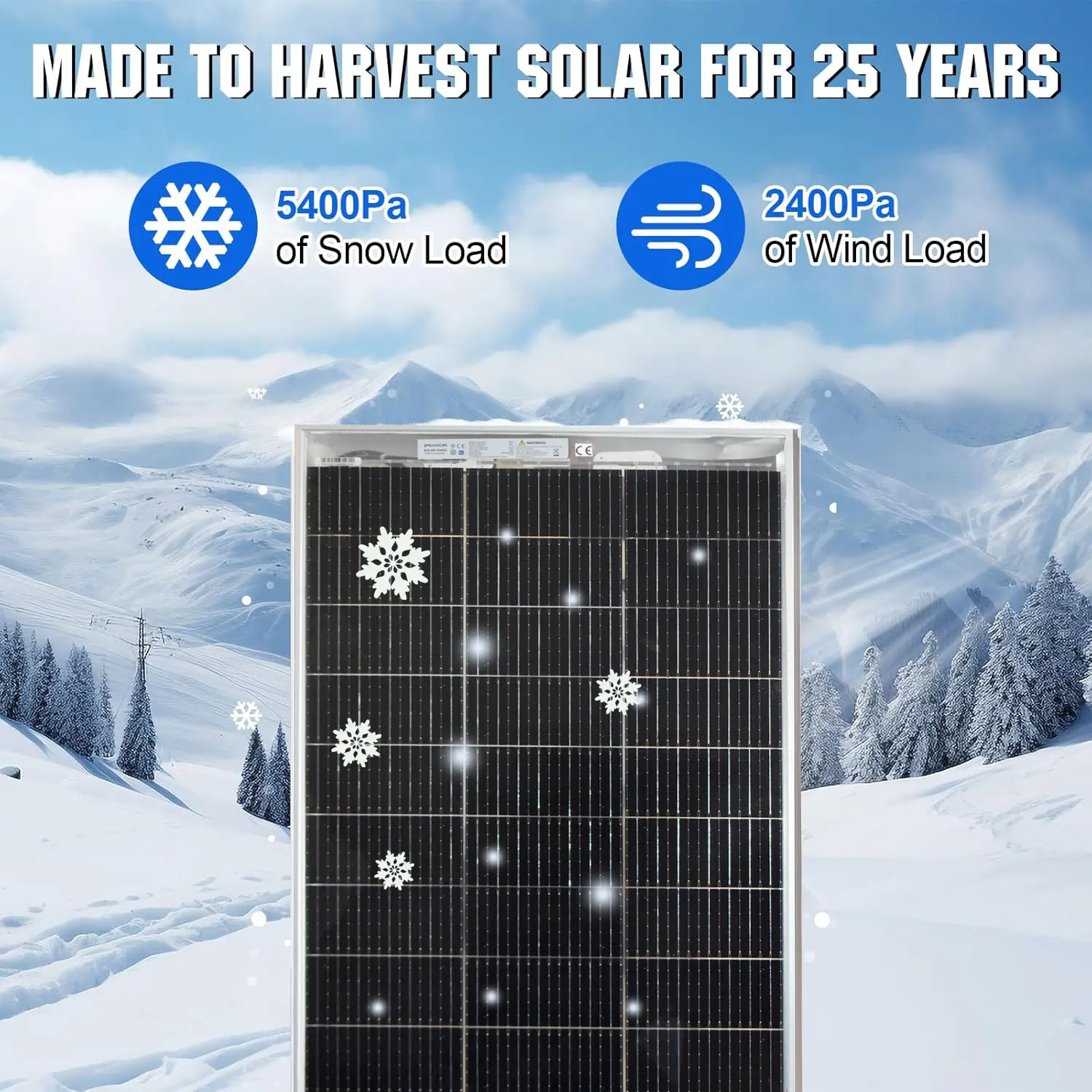

With a service life of more than 25 years, it is 3-4 times that of ordinary flexible solar panels. It is the better choice for motorhomes and families. It has a very high cost performance and is the better choice for home energy investment. We offer 5 Years Free Warranty For the Solar Panels

Model:CNMYPV120(36)M166
Material:Monocrystalline silicon
Maximum Power(Pmax):120W
Maximum Power Voltage(Vmp):21.5V
Maximum Power Current (Imp): 5.59A
Open-Circuit Voltage (Voc): 25.40V
Short-Circuit Current (Isc):5.92A

Solar Cell: Newly 166MM*166MM Monocrystalline
Nominal Operating Cell Temp.(NOCT):-45 to 80℃
Maximum System Voltage:DC1000V
Maximum Series Fuse:10A

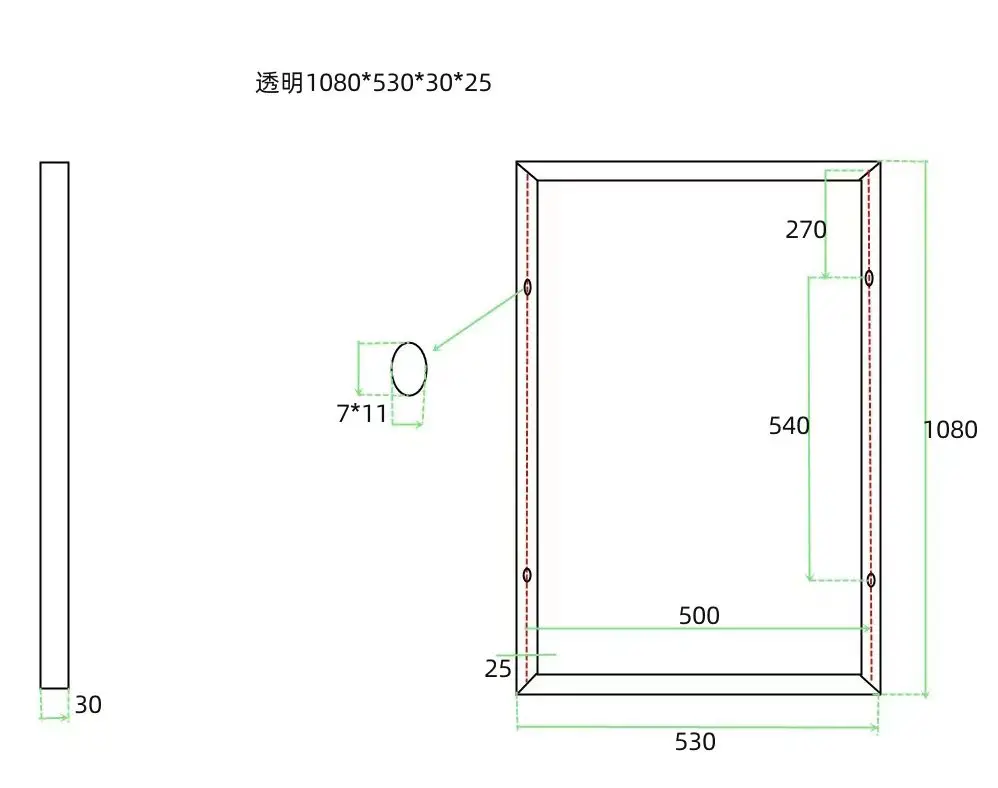

Dimension:1080mm*530mm*30mm
Dimension:42.52inch*20.87inch*1.18inch

Power Tolerance:+/-3%
Package Weight:6.00kg(12.95lb)
(The above data is based on the laboratory standard test environment)
