‌LinknLink eMotion Ultra 60GHz mmWave Radar Sensor - WiFi Smart Presence Detector with IR, Temp/Humidity, MQTT & Alexa Control

‌LinknLink eMotion Ultra 60GHz mmWave Radar Sensor - WiFi Smart Presence Detector with IR, Temp/Humidity, MQTT & Alexa Control

Regular price $69.40 USD
Regular price $69.40 USD Sale price $69.40 USD
Sale Sold out
Shipping calculated at checkout.
Default Title
Quantity

SPECIFICATIONS



Antenna Gain: 4dBi



Antenna Type: 2T2R PCB ANT

Battery Included: Yes

Brand Name: mumubiz

Communication Mode: Wi-Fi 802.11b/g/n (2.4GHz) / BT (4.0 and above)

Communication method: Wi-Fi

Detection Accuracy: 95%

Detection angle: Horizontal +60° , Vertical +60°

Detection range: 6 meters (19.7 feets) max

Dimension: 61x61x25 mm

Does It Includes Wireless Communication: Yes

Embedded PSRAM: 4MB

Flash: 2MB

Hign-concerned Chemical: None

Inbox adaptor: No

MCU: ARM V8M KM4 100MHZ

Model: eMotion Ultra

Model Number: eMotion

Origin: Mainland China

Power Source: Other,Other

Product Name: Smart Home Bridge

Radar Frequency: 58-64GHz

Radar Output Power: 12dBm

Rating Power: 5V DC / 2A

Security Engine: MD5, SHA-1, SHA2-256, DES, 3DES, AES

Security Standard: WEP, WPA, WPA2

State of Assembly: Ready-to-Go

Supported OS: IOS & Android

USB cable: USB-C with TH sensor

Wireless Frequency: 2.4GHz

Working Humidity: ≤85%RH

Working Temperature: 0-50°C

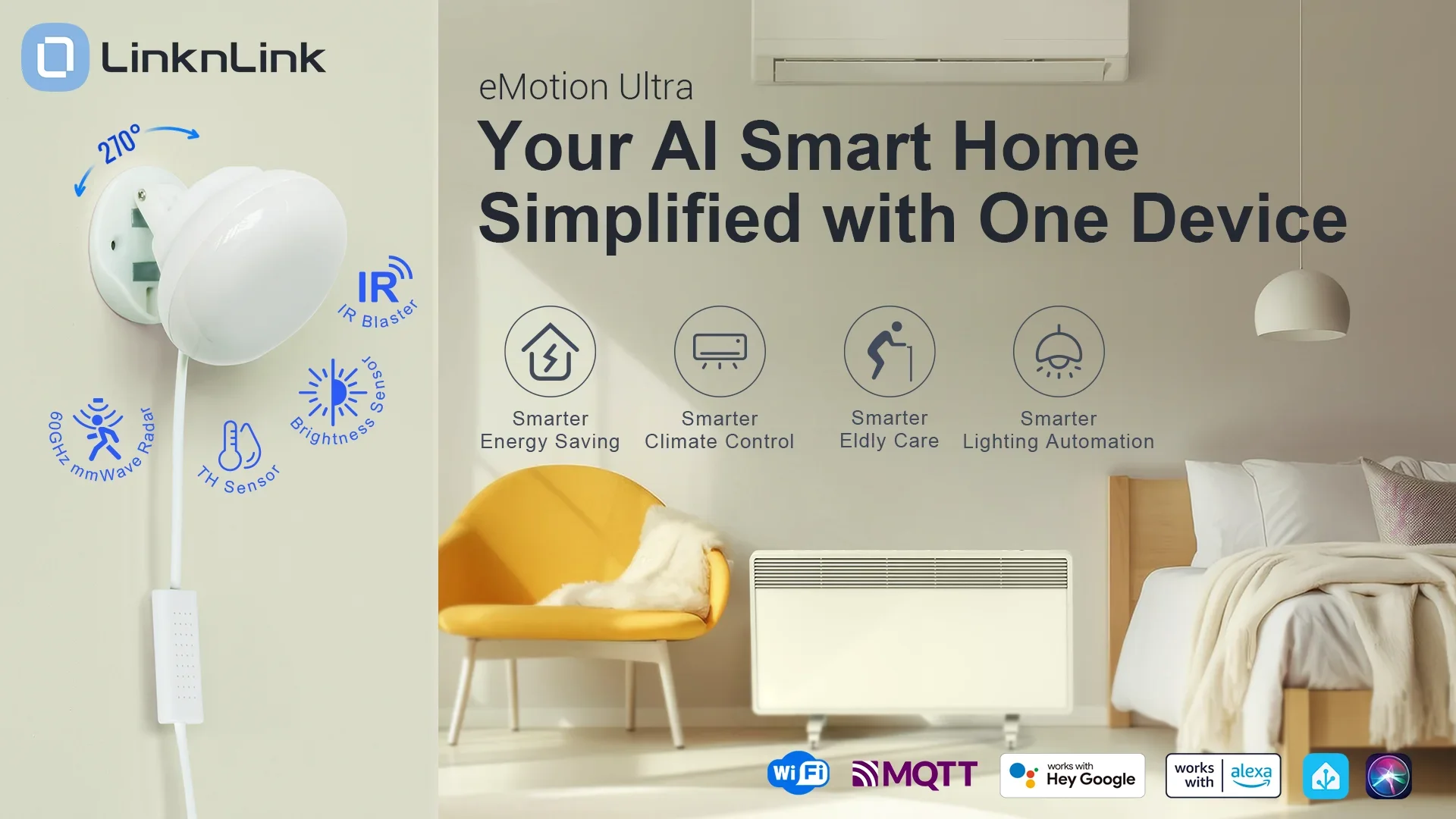

LinknLink eMotion Ultra Hybrid Presence Sensor

WiFi without Hub | Cable Powered without Battery | 60GHz mmWave Radar | IR Blaster | Light Sensor | Temperature and Humidity | Motion2MQTT | IR2MQTT | Home Assistant | Works with Alexa and Google Home| BLE Hub

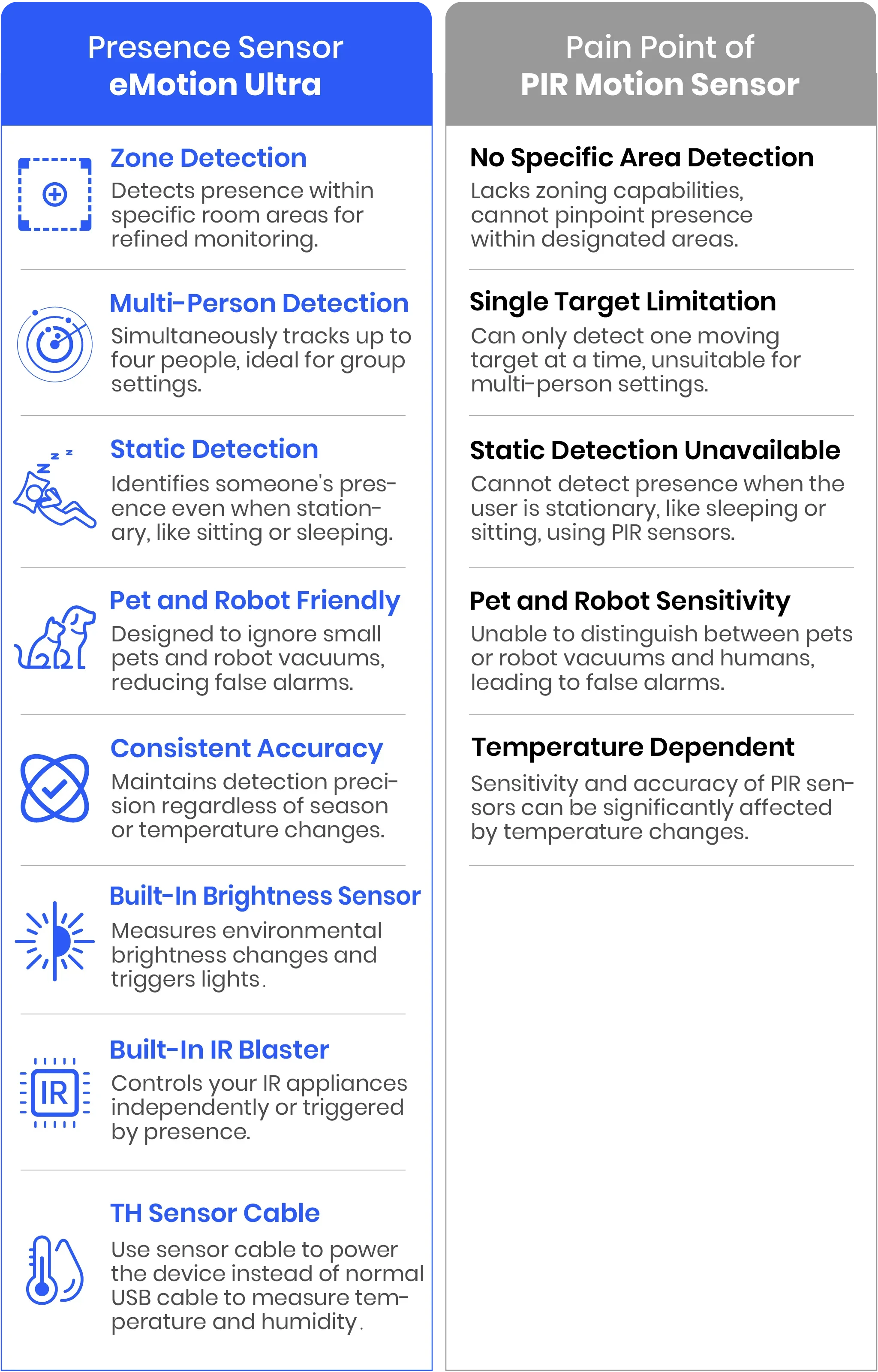

STATIONARY HUMAN DETECTION & ANTI-INTERFERENCE -

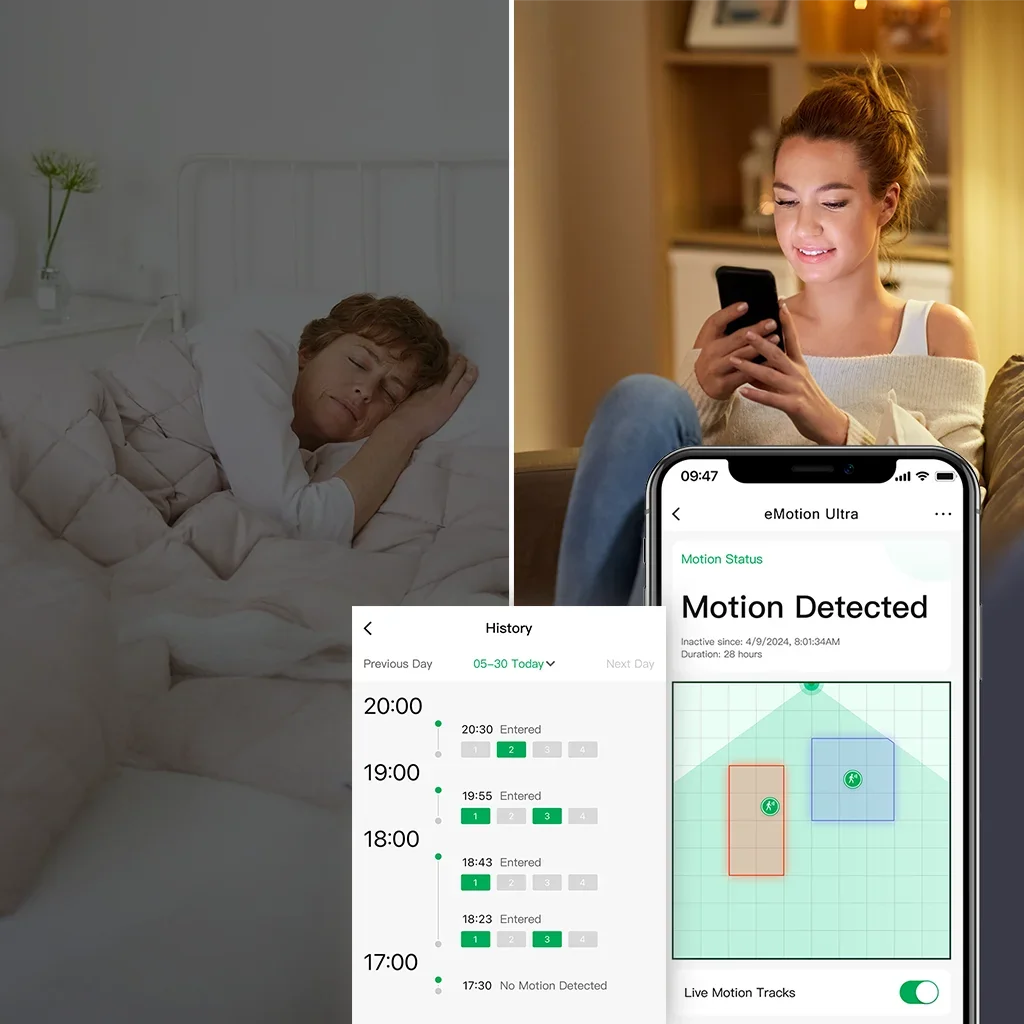

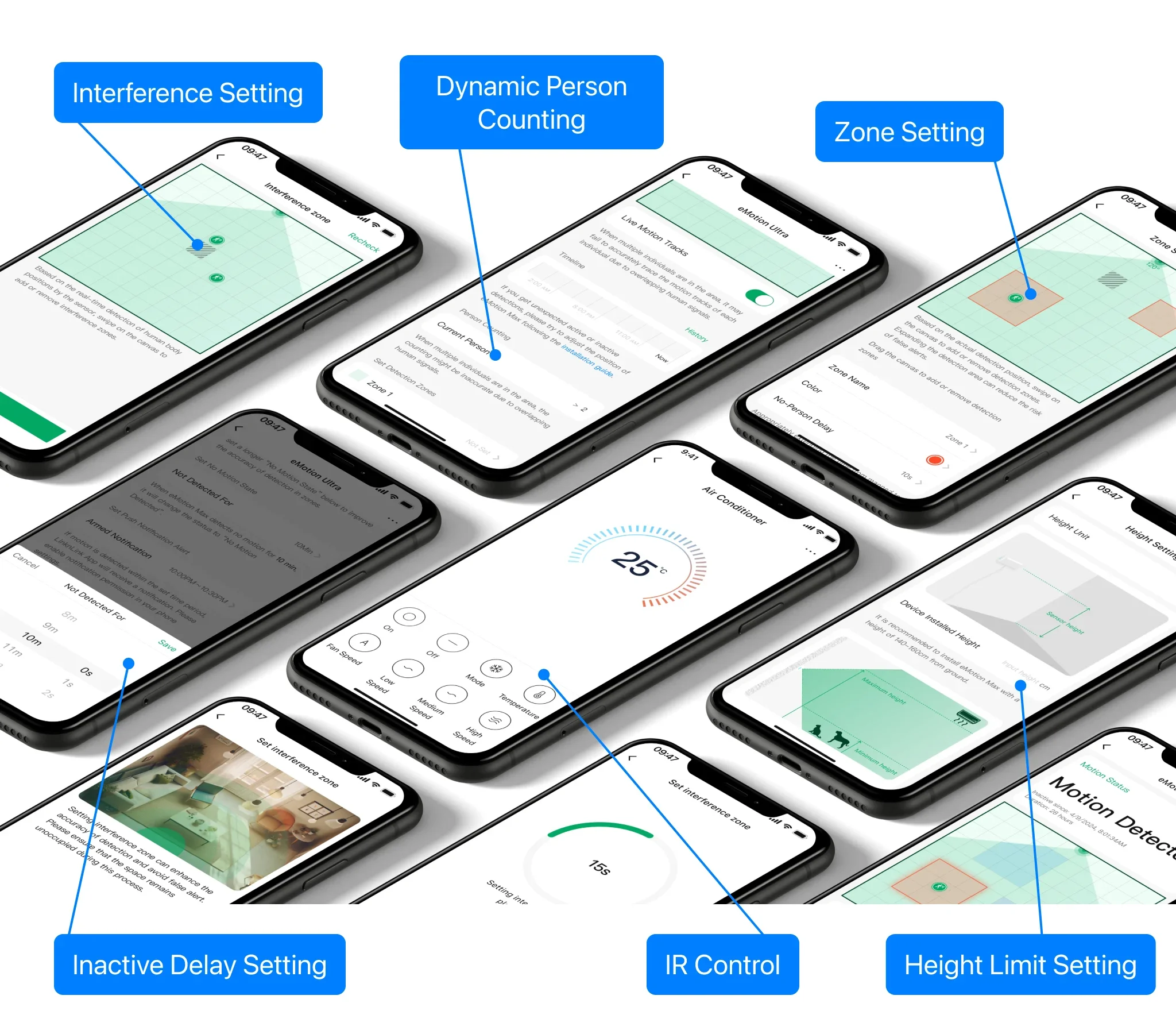

Say goodbye to waving at outdated PIR motion sensors! Powered by advanced mmWave radar, eMotion Ultra detects even the slightest movements — like your heartbeat or breathing (facing front) — while you're sitting still or sleeping. Define in-app interference zones to exclude plants, curtains, or pets. Set a filtering height to ignore fan or pet movement.

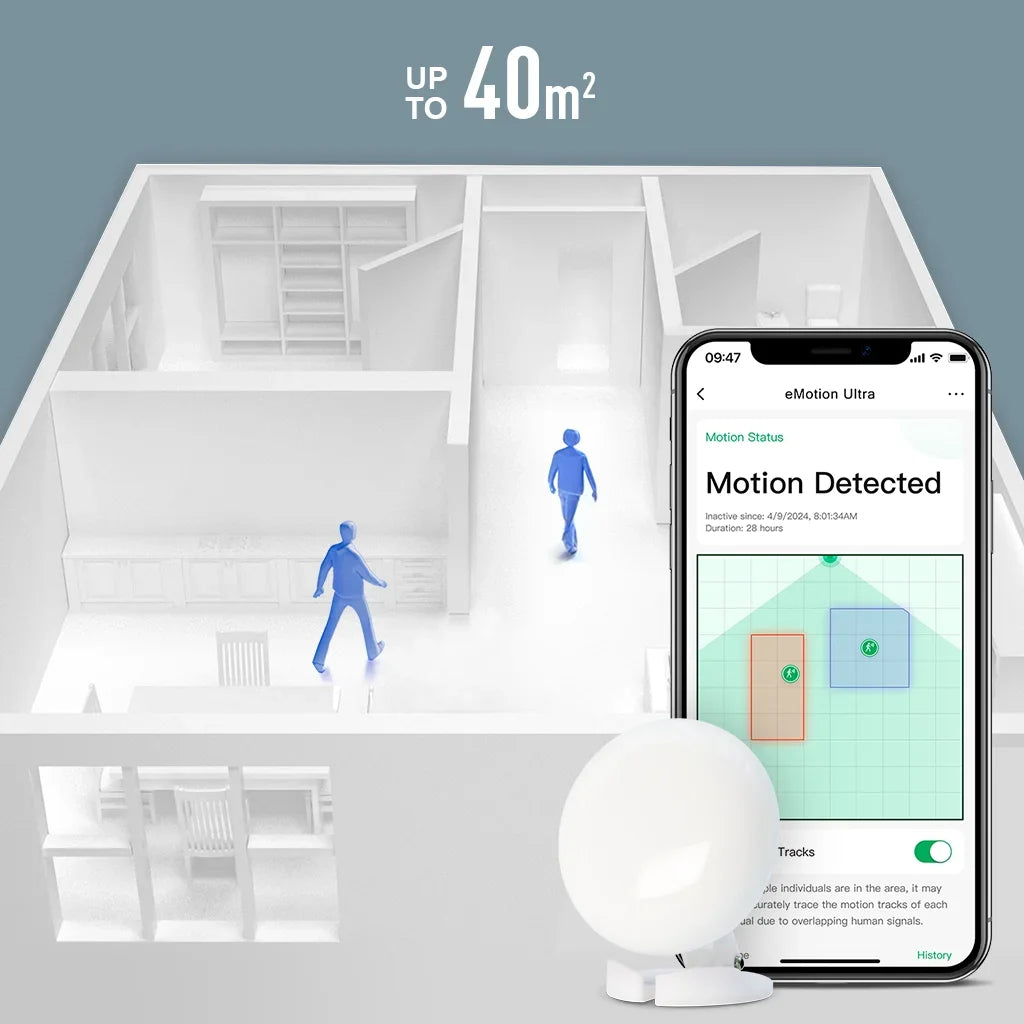

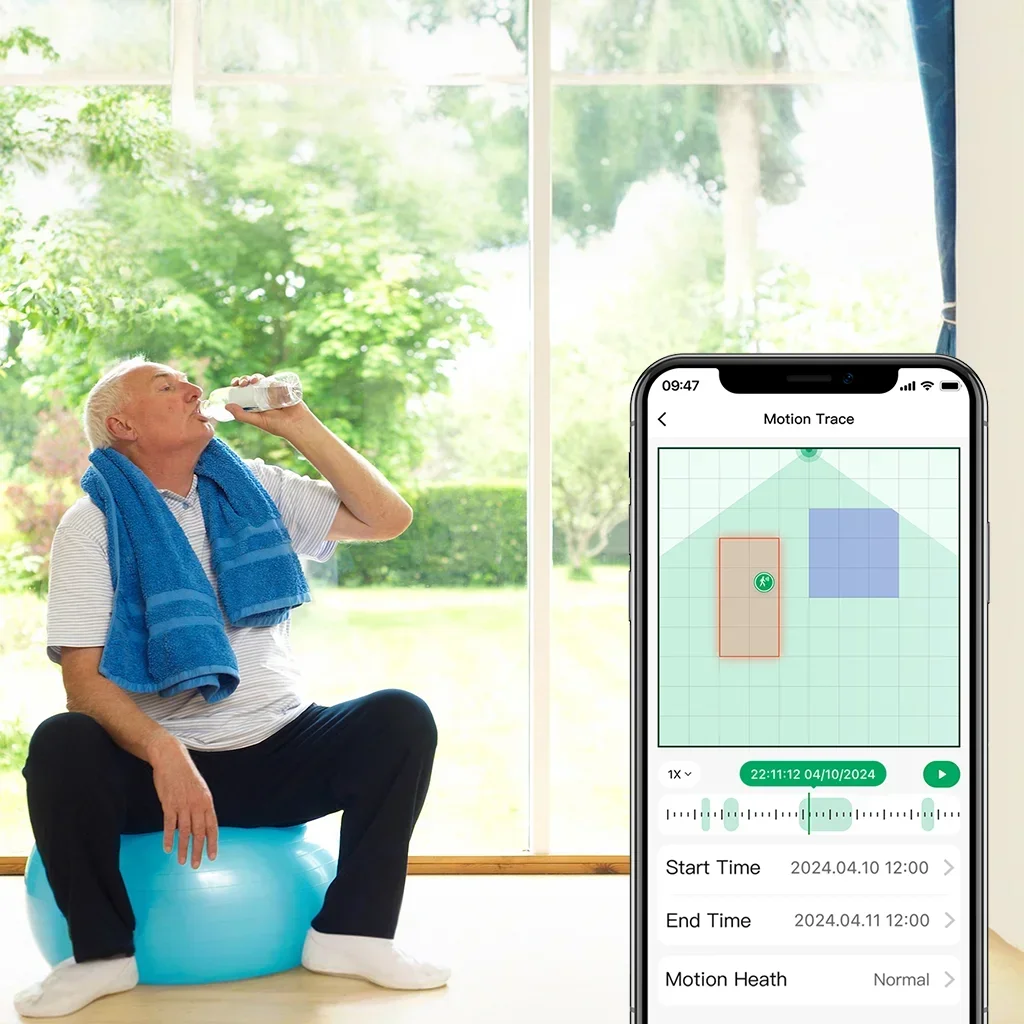

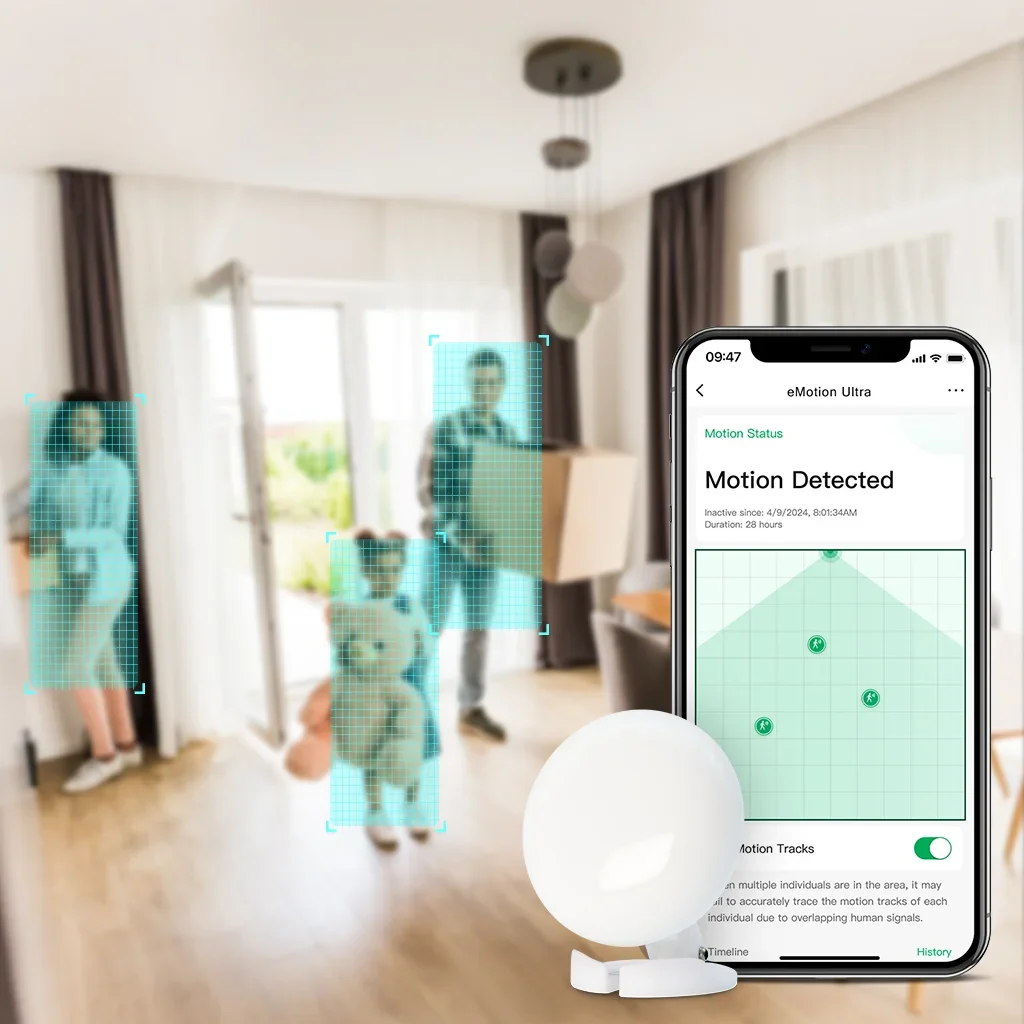

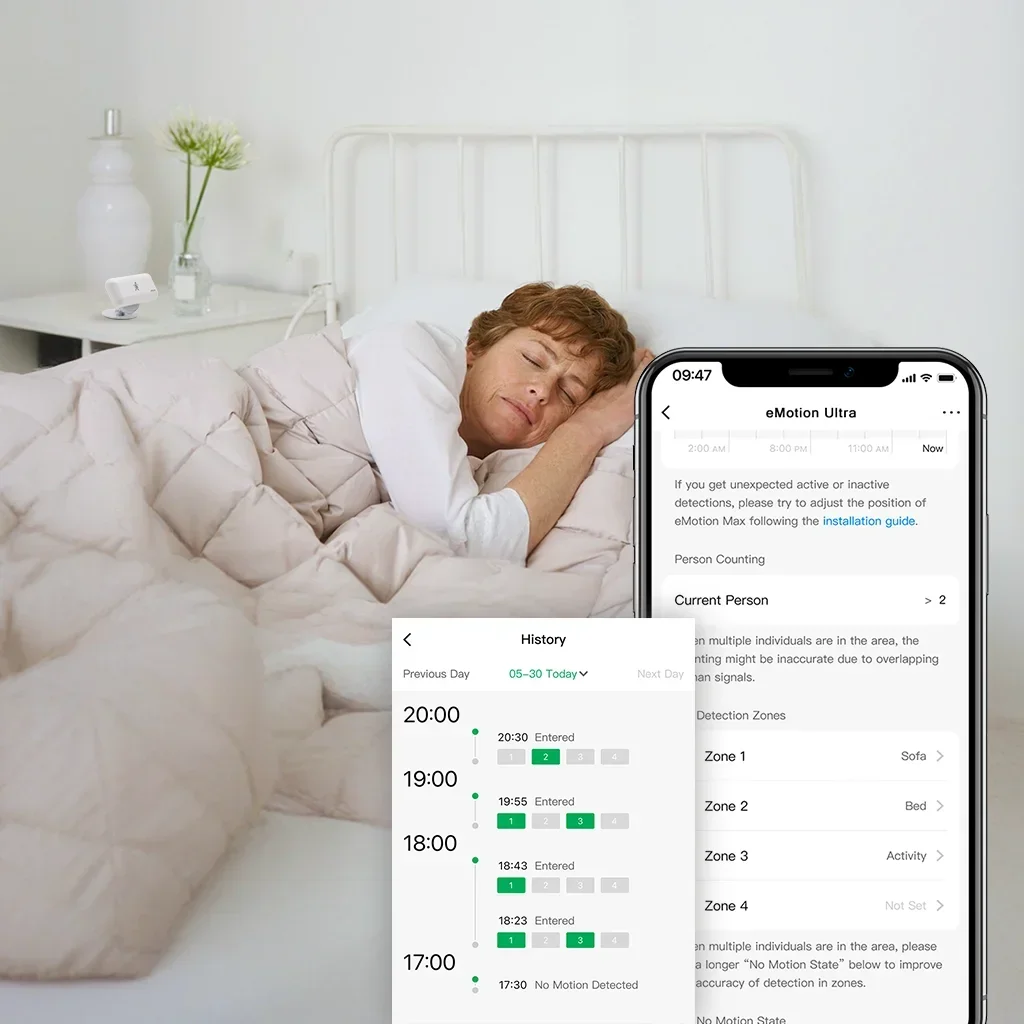

MULTI-ZONE POSITIONING & LIVE TRACKING - No need for multiple sensors! Simply tap and draw max 4 customizable detection zones (e.g., sofa, bed, desk) in LinknLink App and set personalized automation rules for each zone in app or Alexa/Google routines. eMotion Ultra detects and tracks up to 4 people in real-time, identifying their locations within the detection range without compromising privacy.

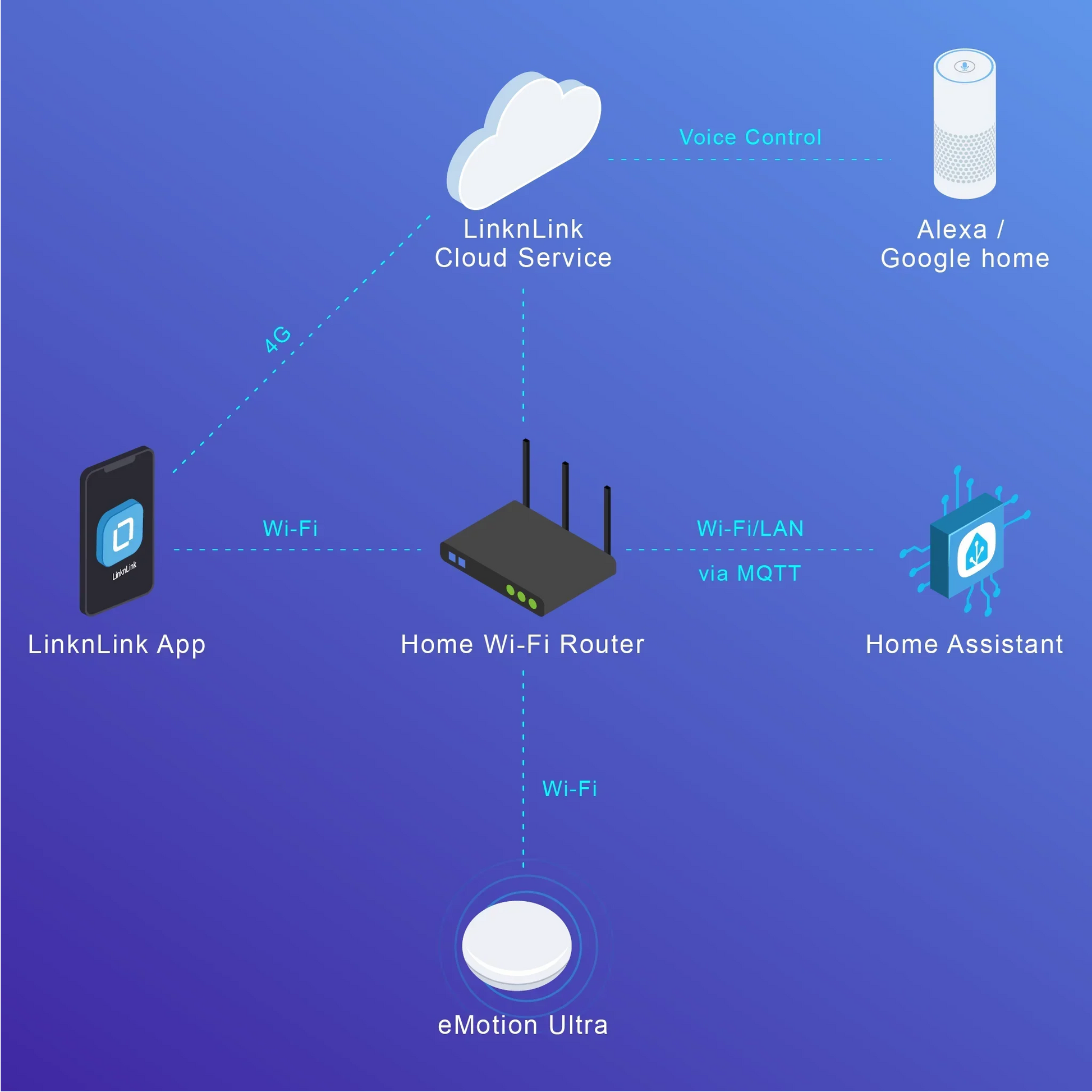

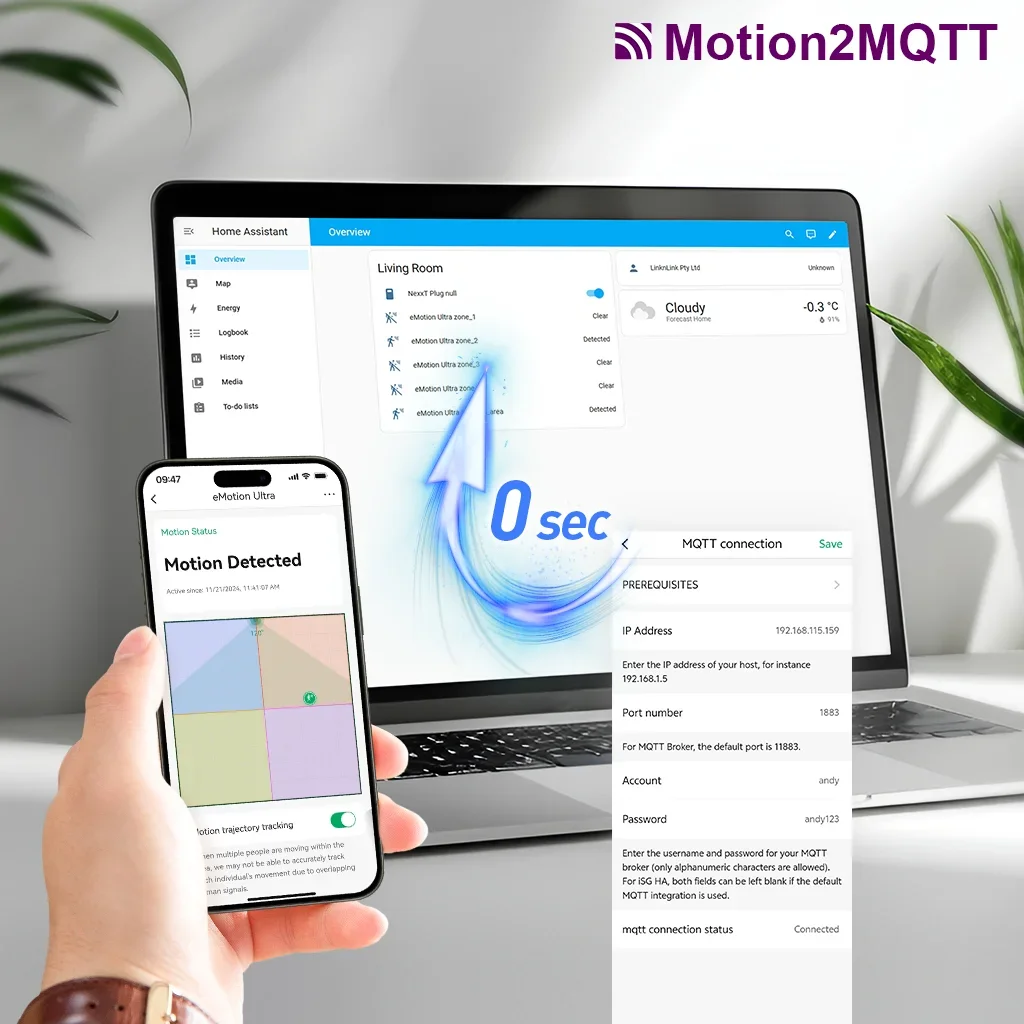

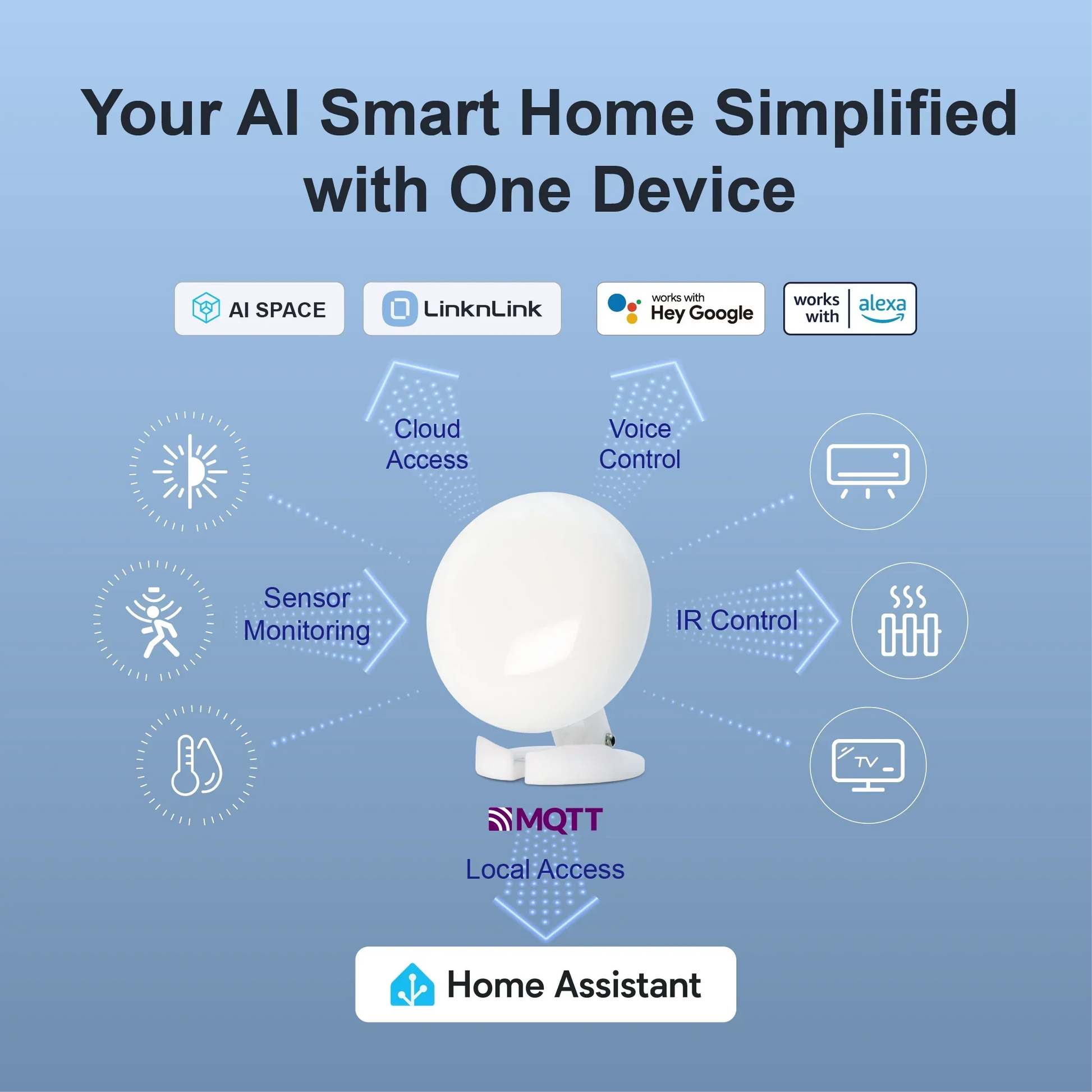

HOME ASSISTANT, ALEXA, GOOGLE HOME - eMotion Ultra operates entirely locally for instant integration with Home Assistant and other MQTT-supported platforms, making all entities (zones, brightness, temperature, humidity, etc.) available. With an internet connection, it also supports Alexa, Google Home, and Siri for third-party control and automations.

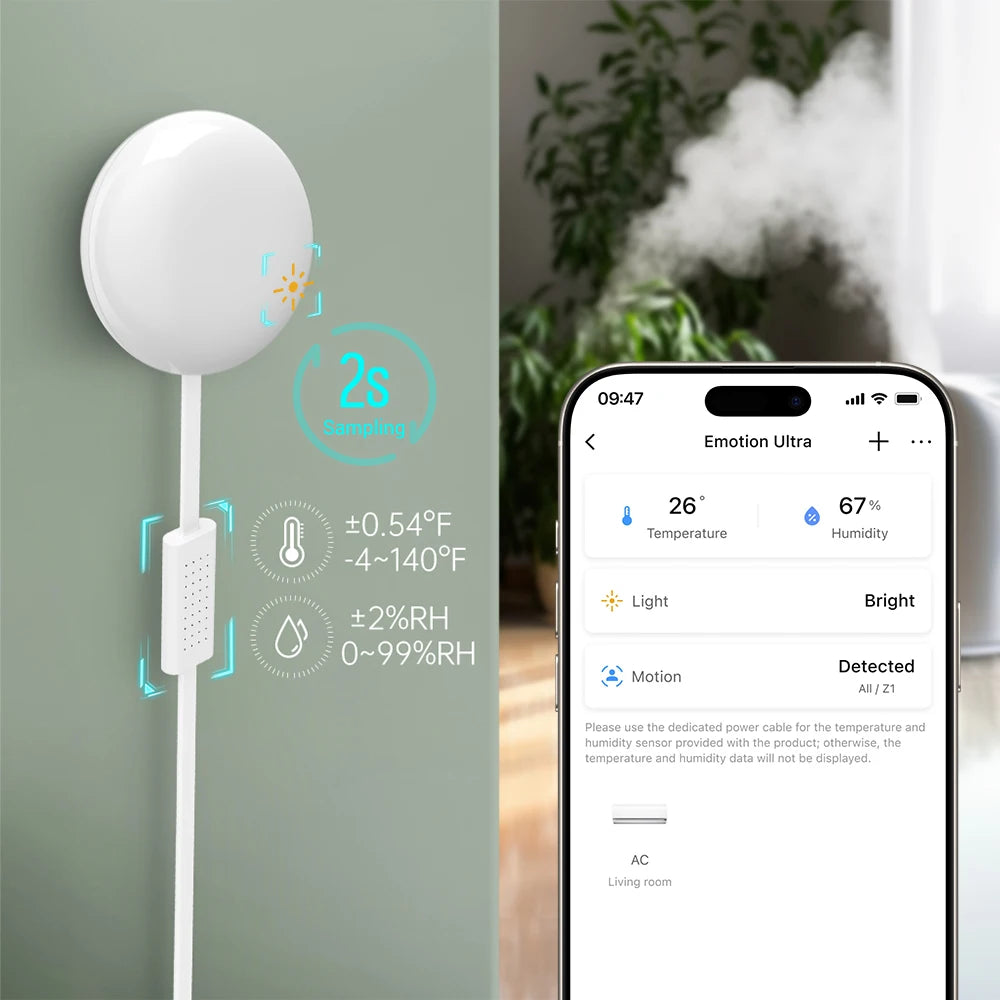

IR BLASTER, BRIGHTNESS, TEMPERATURE & HUMIDITY - The built-in 360° IR blaster supports universal control of TVs, air conditioners, audio systems, and more, with a range of up to 15m (49ft). The integrated light sensor and on-cable temperature humidity sensor detect ambient environmental changes. These sensors collaborate with presence detection to enable complex automation, reducing or eliminating the need for additional sensors.

ALERT NOTIFICATIONS & CLOUD DATA EXPORT - Get real-time notifications directly to your phone whenever there's a change in status whether it's presence, brightness, temperature, or humidity, even if the app isn't open. Your data is securely kept on the cloud with a comprehensive 3-year trackable history and can be downloaded in standard CSV format for analysis or other purposes.

BLE HUB FOR EXTENDED ACCESSORIES - Connect and manage more devices with eMotion Ultra, which acts as a dedicated BLE hub for a wide range of LinknLink Bluetooth accessories: Contact sensors, Temperature and humidity sensors, Fingerbots, Curtain openers and Door locks. Supports max 20 BLE accessories and sync them with Home Assistant via MQTT.

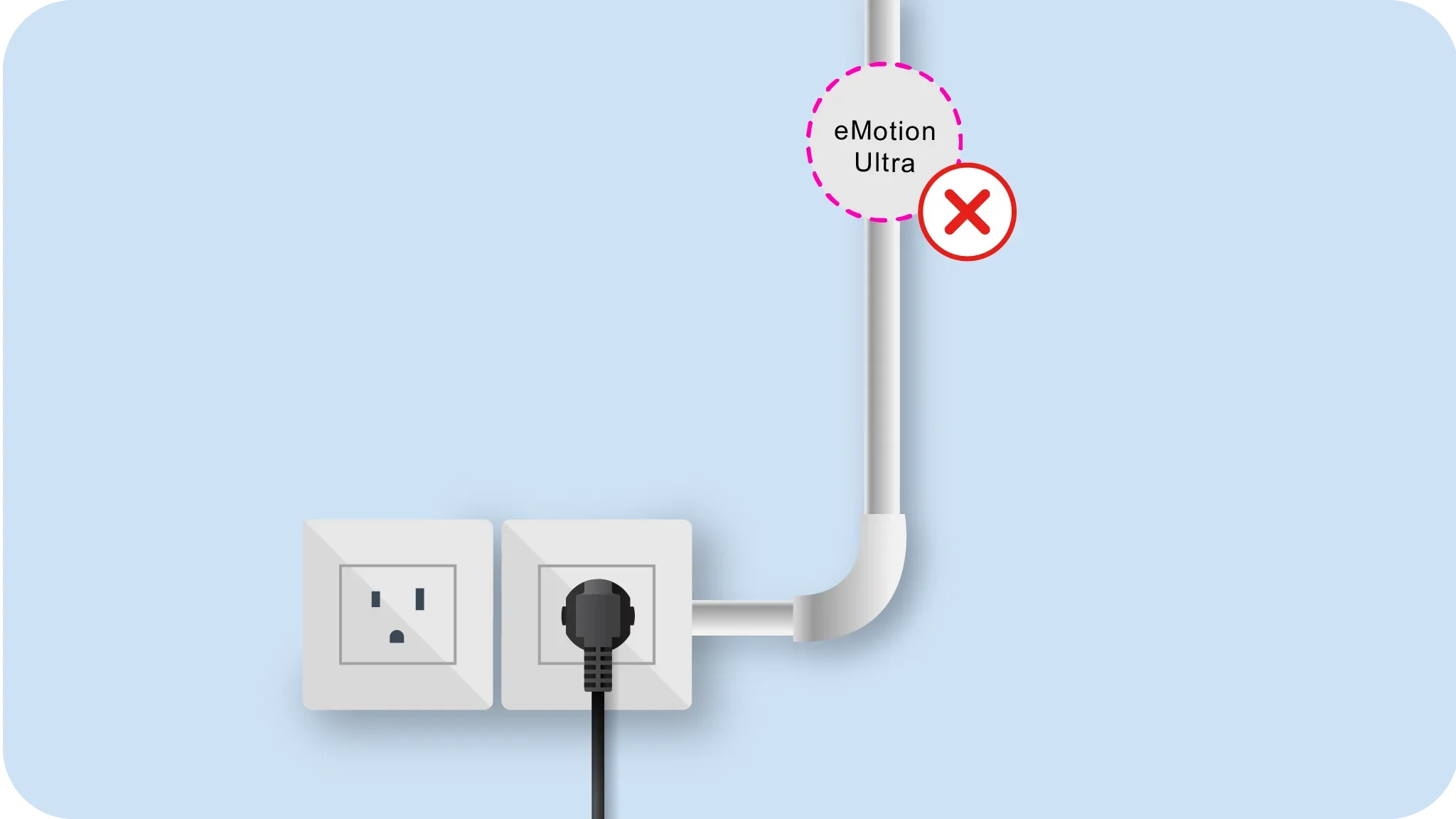

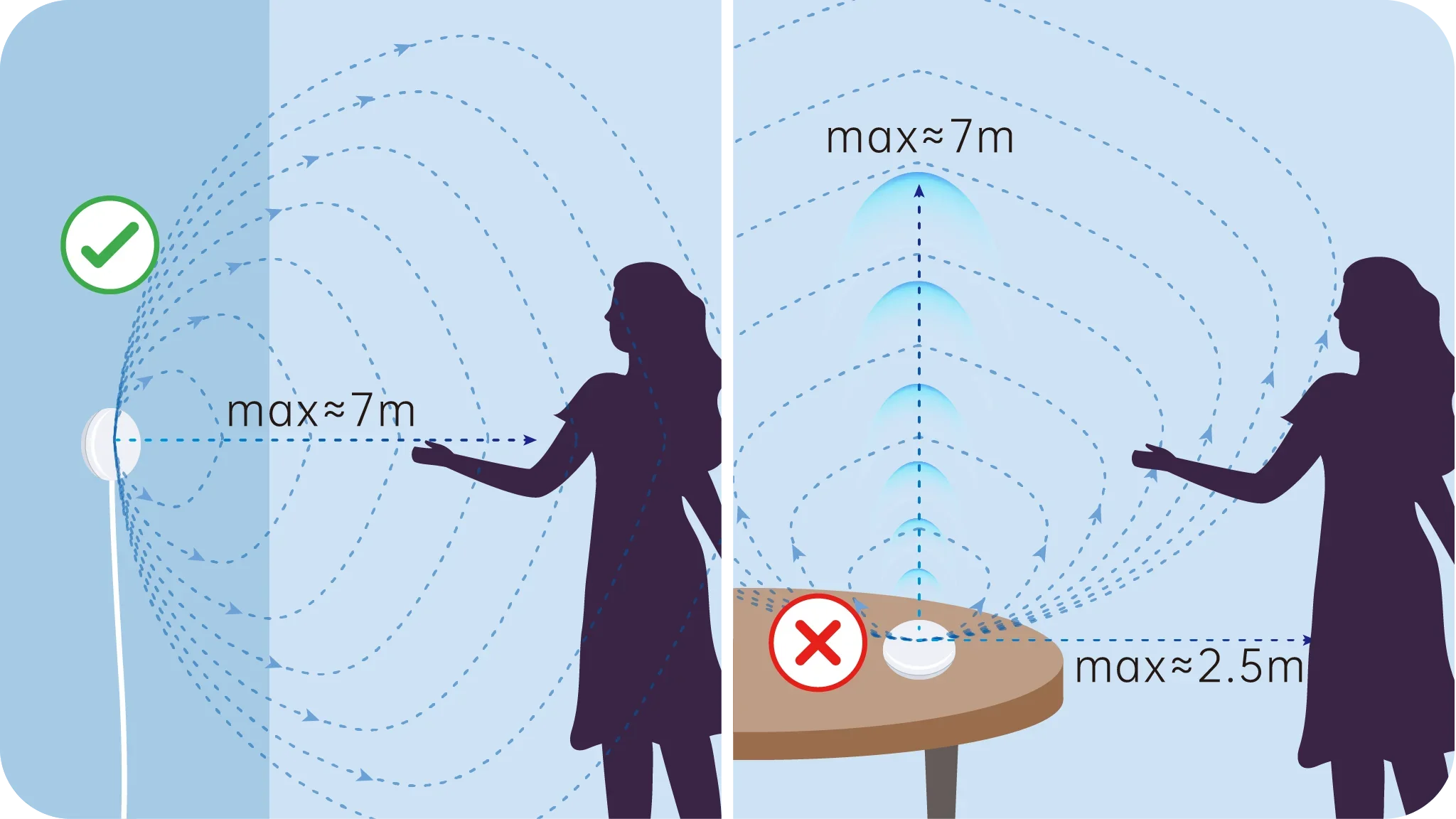

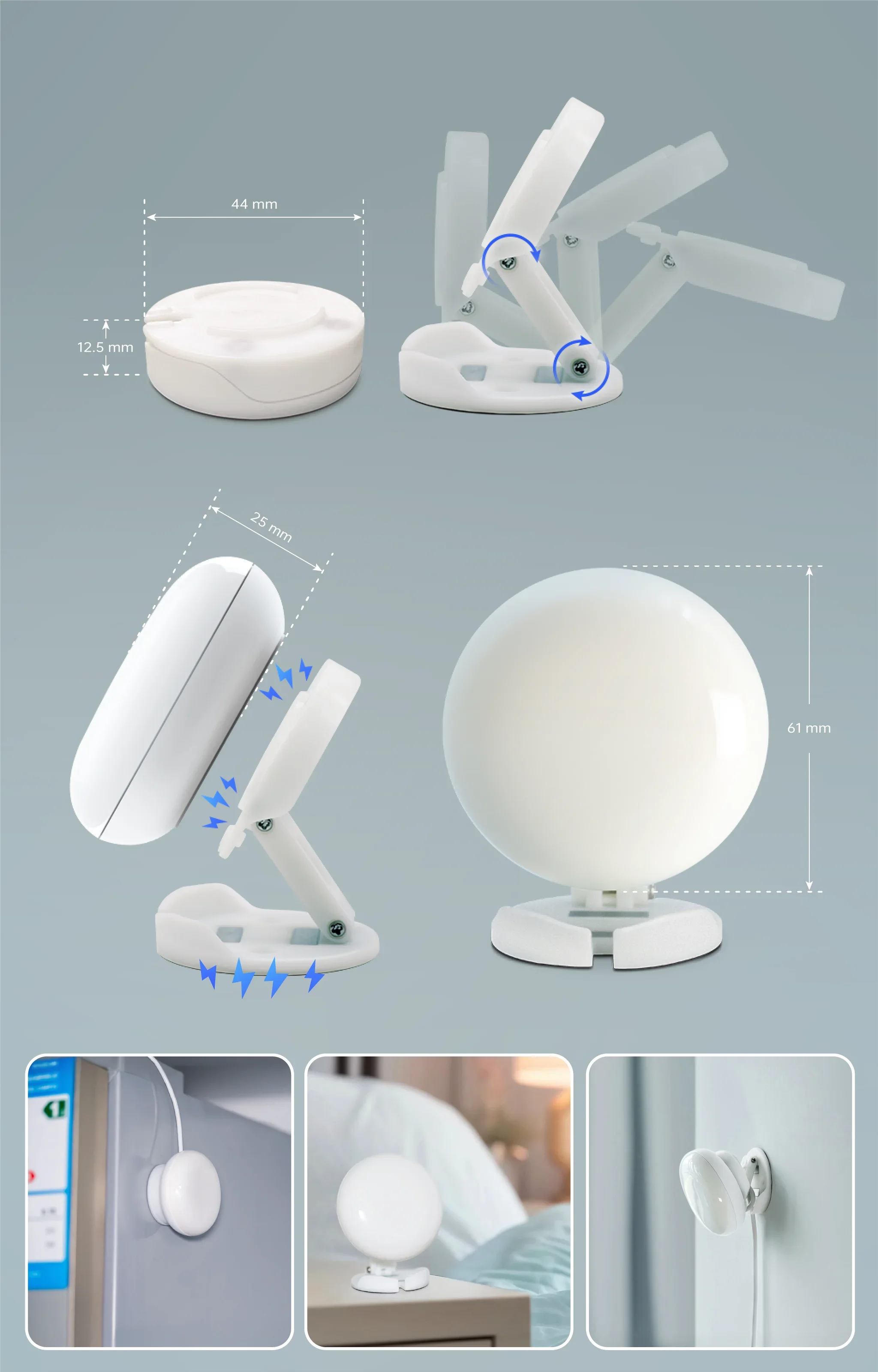

DOUBLE-SIDED MAGNETIC INSTALLATION - Improved foldable and adjustable stand features double-sided magnets for flexible installation options: Desktop placing, Wall mounting or Magnetic attaching. IMPORTANT NOTICE: Requires a certified 5V/2A power adapter. Refer to "Installation Guide" in app for setup instructions. Max detection range: 6m / 20ft (moving) and 4m / 13ft (stationary)
