HTRC T240 High Power Battery Charger AC150W DC 240W 10A Dual Channel Touch Screen Lipo Balance Chargers Discharger for RC Models

HTRC T240 High Power Battery Charger AC150W DC 240W 10A Dual Channel Touch Screen Lipo Balance Chargers Discharger for RC Models

$63.24 USD
$63.24 USD $63.24 USD
Sale Sold out
Shipping calculated at checkout.
Socket Standard
Ships From

SPECIFICATIONS



Brand Name: HTRC



Certification: CE,FCC,RoHS,UL

Charge current: 0.1-10A *2

Charge power: AC mode 150W (CH1+CH2=150Watt),DC mode 120W*2 =240W

Current drain for balancing: 500mA/cell

Data Transmission: No

Dimension: approx.145*105*64mm

Discharge current: 0.1-2A*2

Discharge power: Max 10W*2

Display screen: Yes

Hign-concerned Chemical: None

Intelligent Charge: Yes

Lilon/LiPo/LiFe/LiHV cell count: 1-6cells*2

Model Number: HTRC T240

NAME: Lipo charger

NiCd/NiMH battery cell count: 1-15cells*2

Origin: Mainland China

Output Power: 150-500（include500）

PB Battery voltage: 2-20V*2

Package: Yes

Package size: approx.215*155*75mm

Quick charge: Yes

Smart battery: I/II/III*2

Type: Electric

Use: Standard Battery

name 2: balance charger

name 3: RC Charger



Specification:
Firmware update.
Battery Meter:Display lithium battery cell counts,battery capacity percentage,each cell's  voltage. ( Does not support 1s battery )
TVC(Terminal voltage control):The Charger allows user to set the charge/discharge end voltage.
Lithium Battery internal Resistance Check: can display each cell's resistance.( Does not support 1s battery )
Calibration: cell voltage monitoring and calibration. ( Calibration function for 6s lithuim battery only )
Smart battery:Smart battery I,II,III,( Need optional DJI Charging cable )
Re-peak and cycling of NiMH/NiCD battery.
Maximum Safety:Automatic charge current limit,low input voltage setting,Delta-peak sensitivity, capacity limit, processing time limit,temperature threshold.

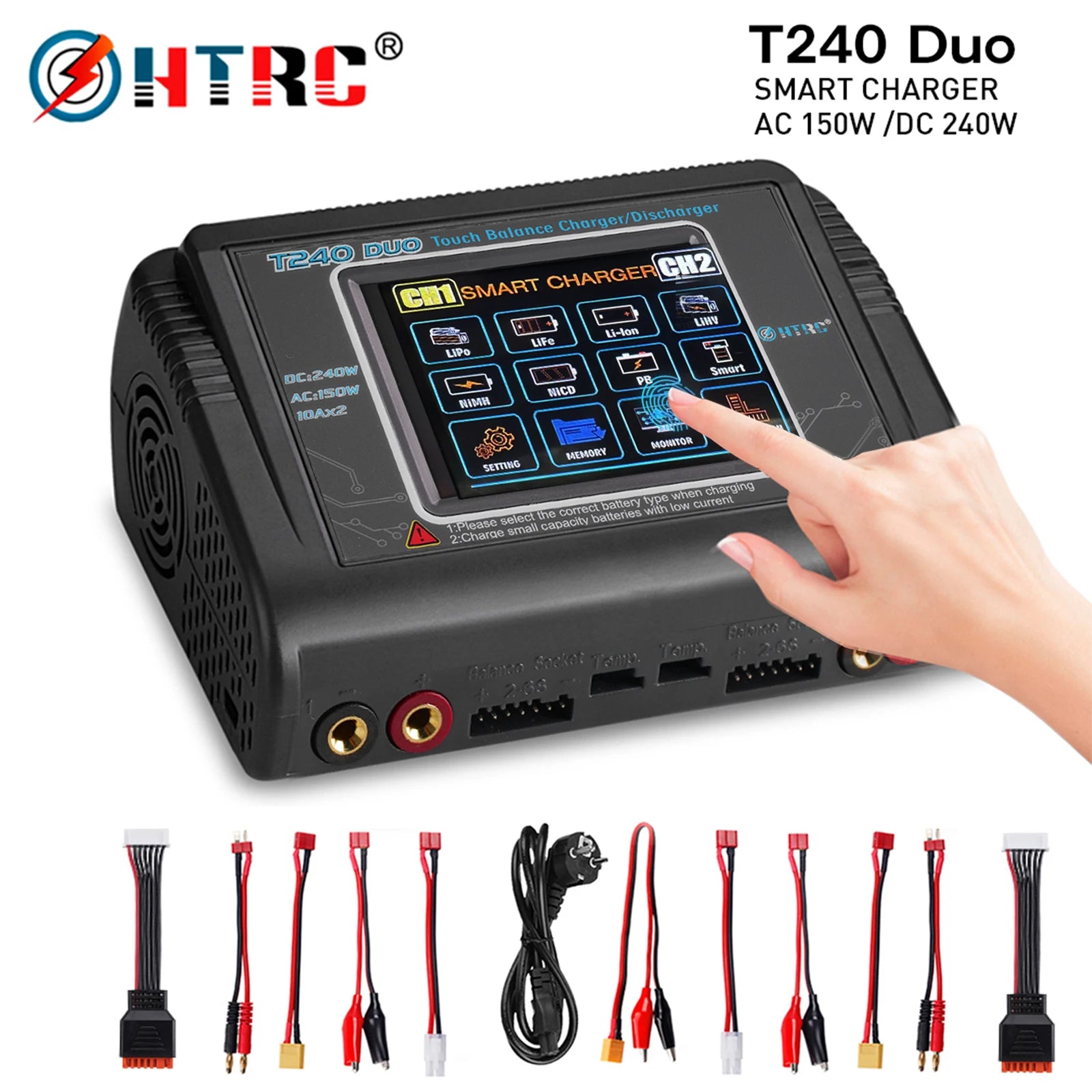

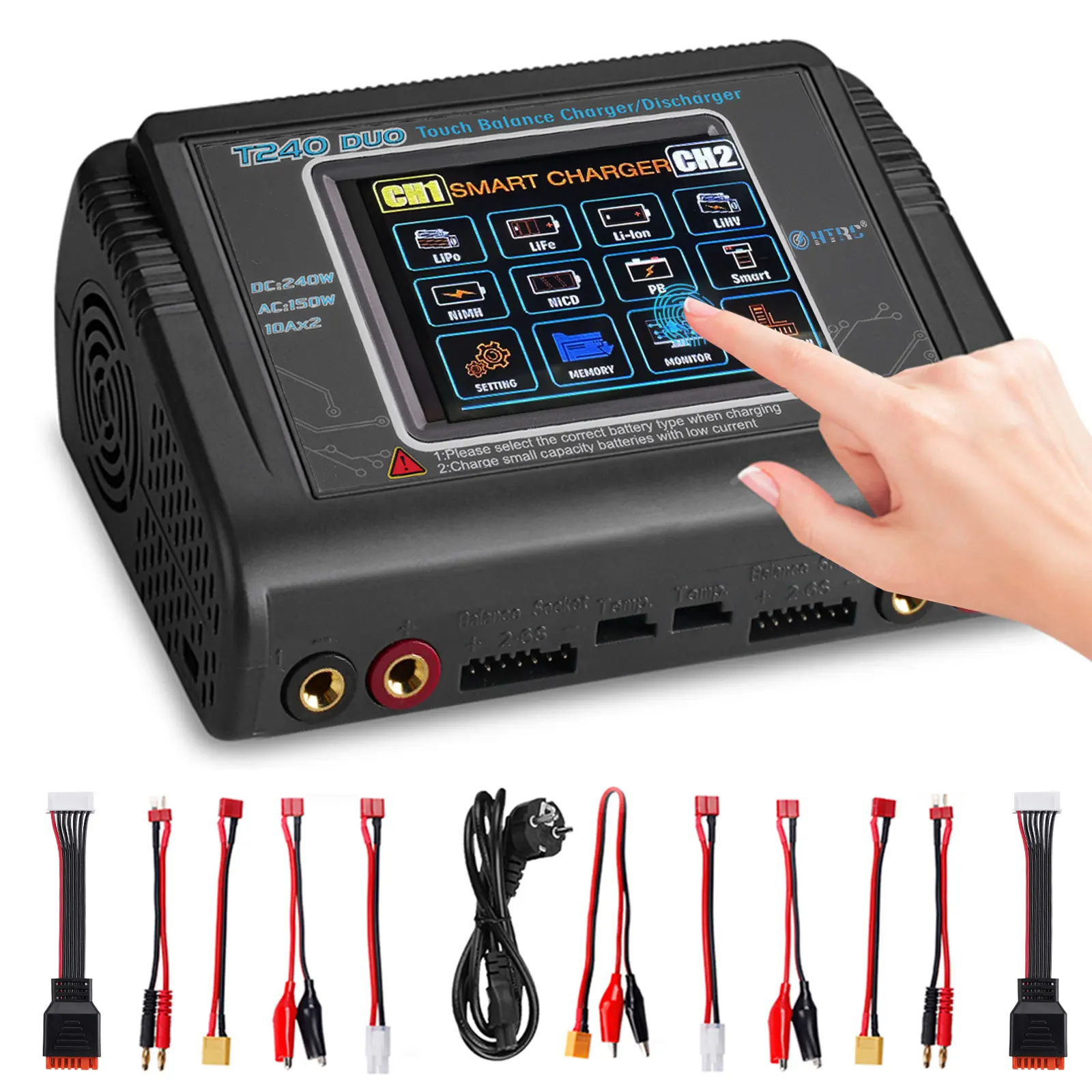

Package list:
1x T240 Charger
2x Charge cable banana plug to T-Plug
2x Extension charge cable T-Plug to XT60
2 x Extension cable T-plug to Tamiya
2 x Extension cable T-pplug to crocodile clip
2 x Balance Board Cable
1x AC Cord (US EU UK AU optional)
1x DC Cord
1x User's Manual

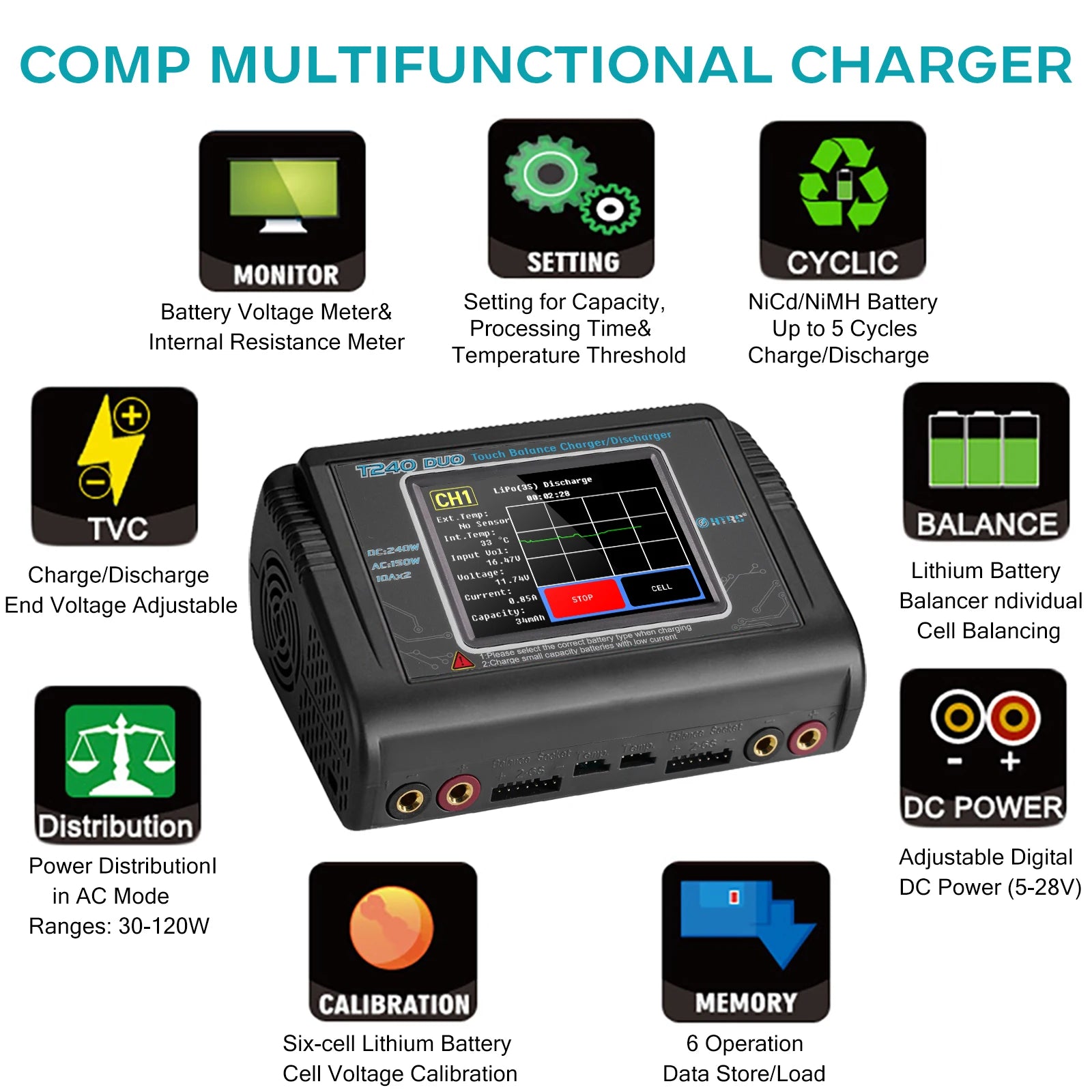

Multi-function:

T240 Features:
Multiple charging modes.
Graph display of charging status
Adjustable digital DC Power.
NiMH/NiCd: Charge, Discharge, Cycle.
PB: Charge,Discharge,Trickle.

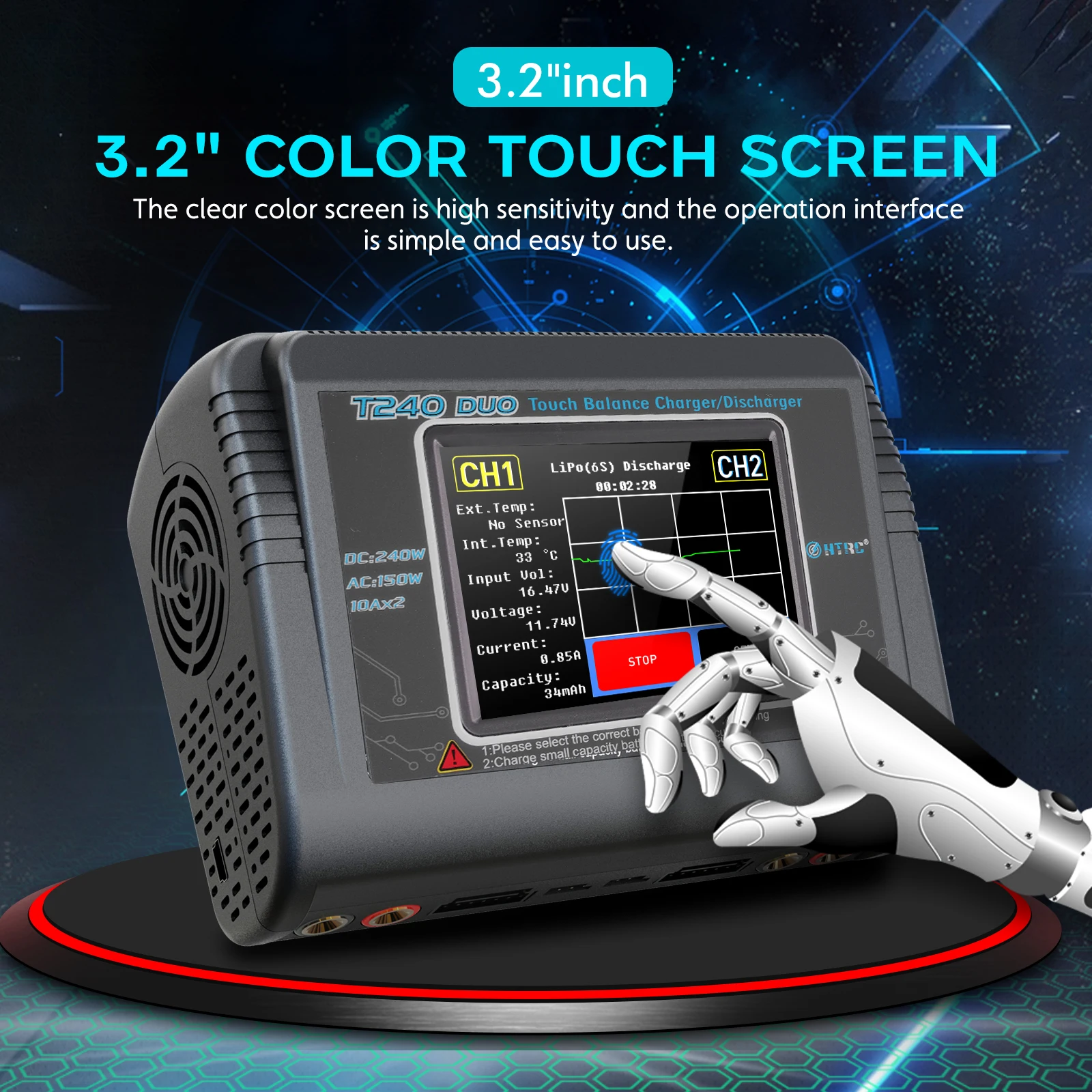

Compact touch screen charger, easy operation.
Automatic identification of Lithuim batteries cells counts

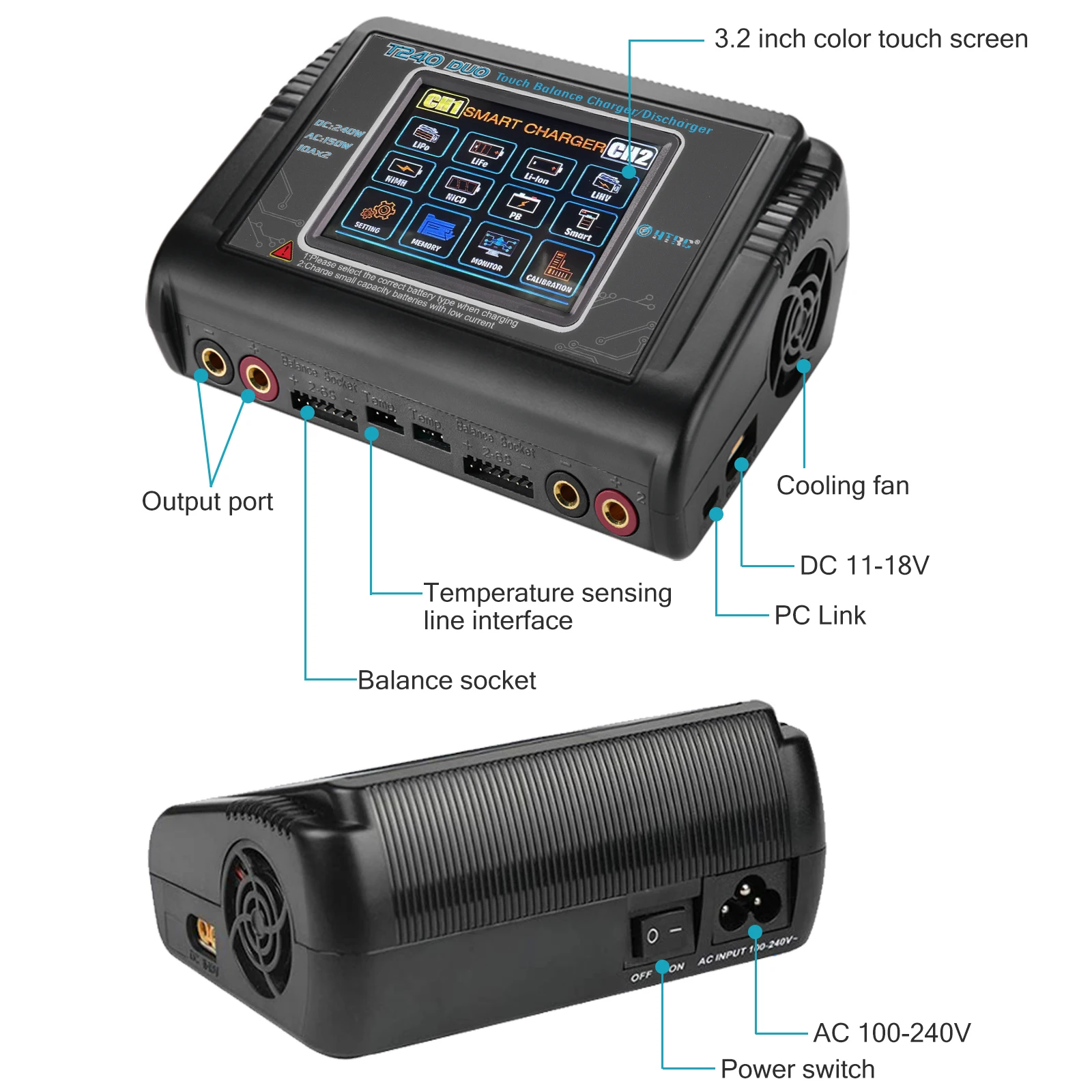

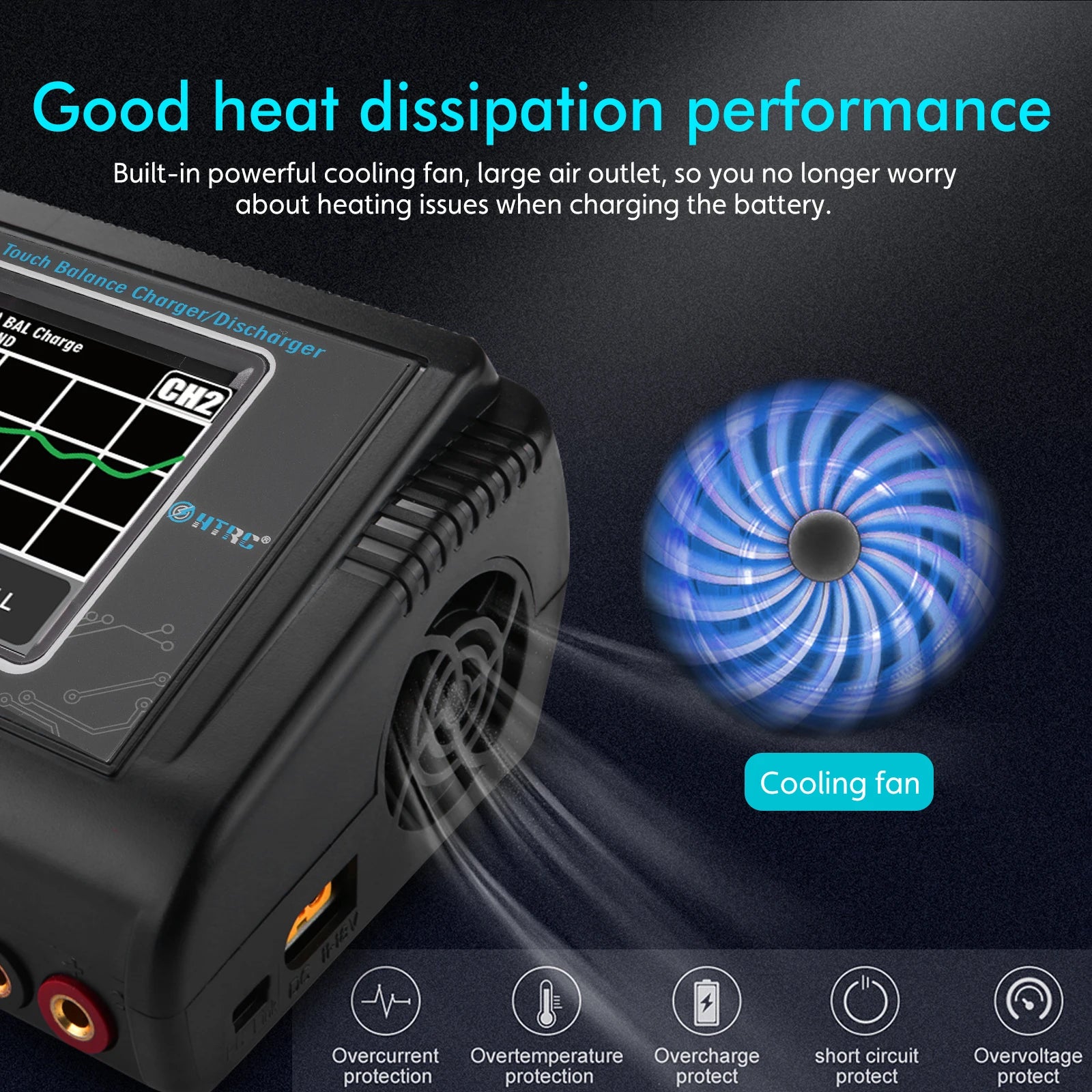

Built in smart cooling fan for easy heat dissipation.
Built-In PFC AC adapter high efficiency.comes with power switch.
Lipo/Lilo/LiFe/LiHv: balance charge, charge, storage, discharge.

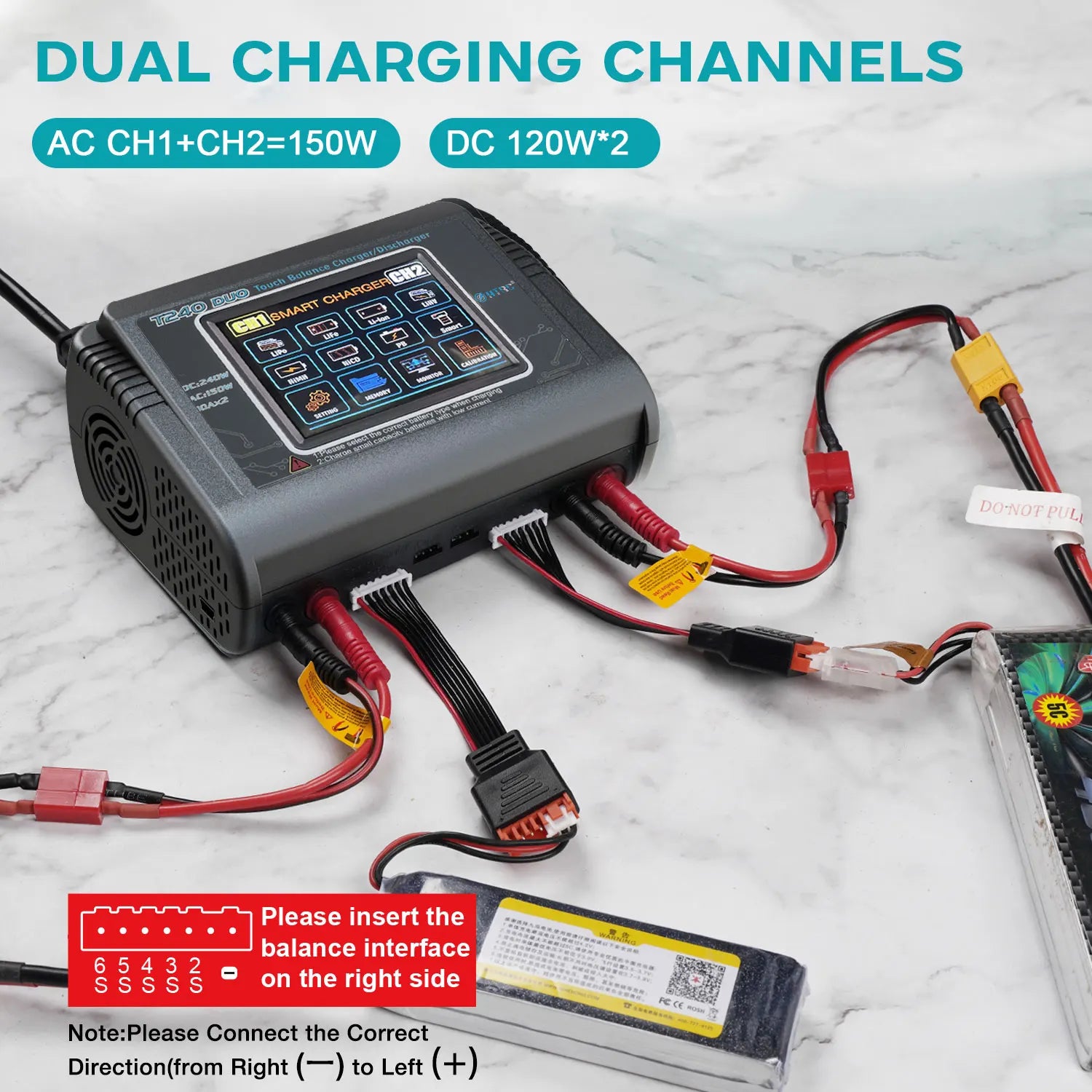

Twin-channel,charge two different kinds of batteries simultaneously.

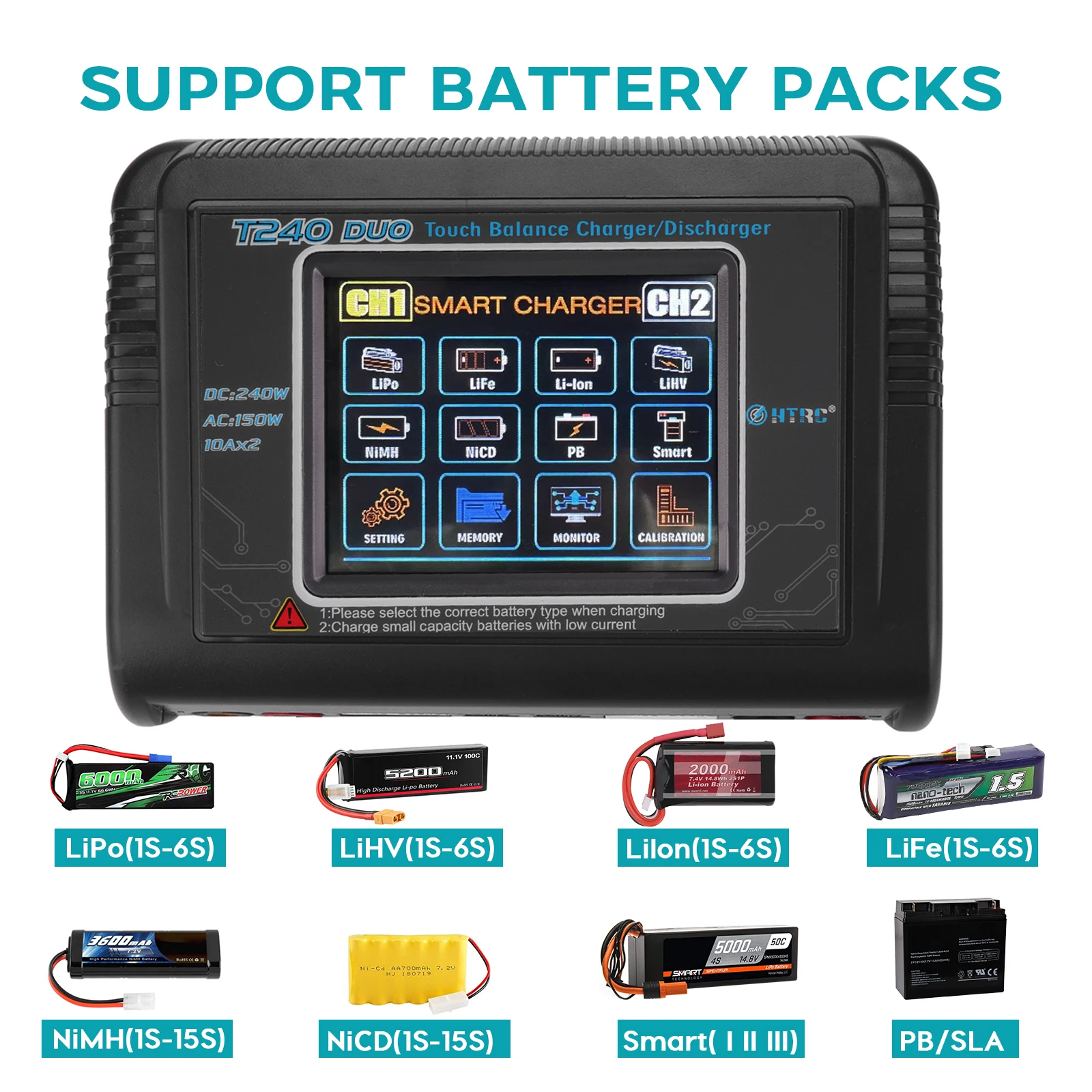

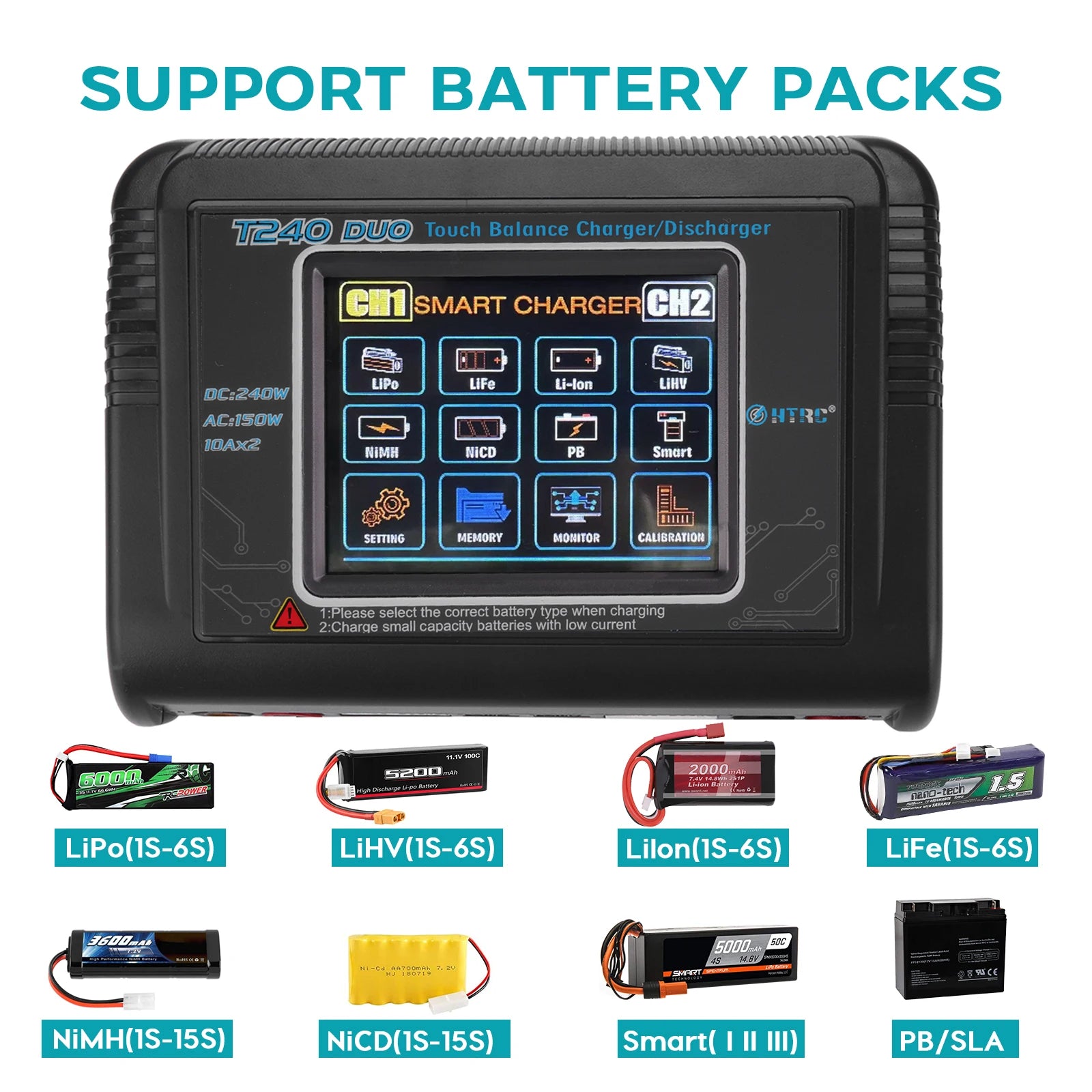

Practical for variety of batteries.LiPo LiFe Lilon NiCd NiMh Pb,and high power battery LiHV.
High power,single port max 120W in AC mode. support power distribution in AC mode, ranges from 30-120W
